Chuck
- Sort condition
- Newest first
- Oldest first
- Large number of views
Show 1 to 15 of 15
-

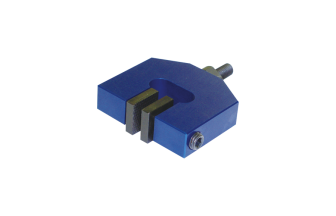

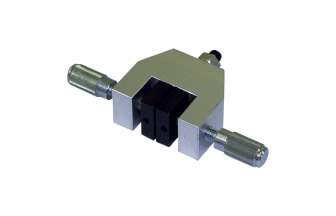

Small flat chuck MODEL-201
Suitable for tensile test by small load. All-purpose type small-sized double tightening jig for a wide range of ap…
-

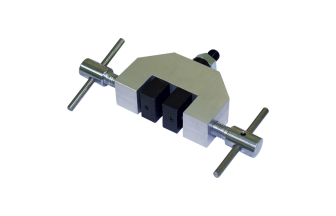

Flat chuck MODEL-203
All-purpose type double tightening jig of 2 kN capacity.Example of use Tensile test Peeling test Connector inser…
-
Flat chuck MODEL-207-2K
A compact, large-capacity double tightening gripping jig.Example of use Tensile test Weld strength test Break te…
-

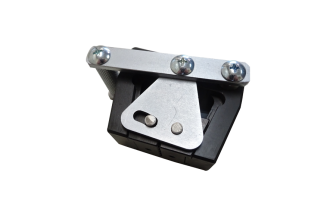

Wedge type chuck MODEL-209
A wedge type chuck that increases the tightening force when a tensile force is applied. Little force is required i…
-

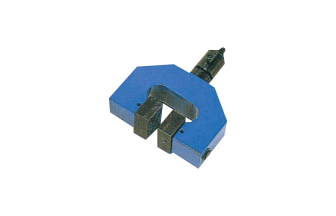

Large flat chuck MODEL-211
A large-capacity double tightening gripping jig.Example of use Tensile strength test (weld test, adhesion)Specific…
-
Wedge type chuck MODEL-212
A wedge type chuck that increases the tightening force when a tensile force is applied. Little force is required i…
-

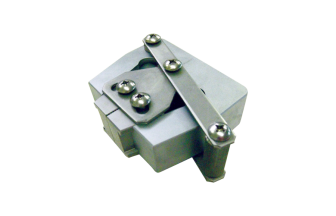

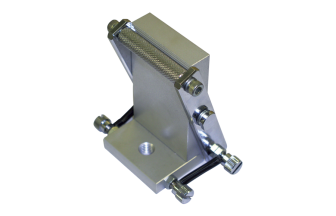

Single roller chuck MODEL-221 Series
Capable of holding such easy-to-cut materials as film, cloth and paper without damaging them. Test pieces changeab…
-

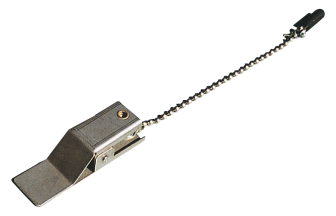

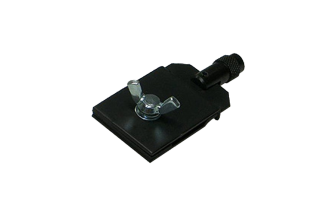

Clip type pulling jig MODEL-225
A clip type pulling jig for micro load. Easy workpiece fixing.Example of use Micro load pull strength testSpecifi…
-

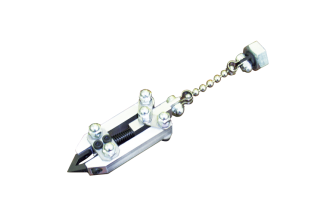

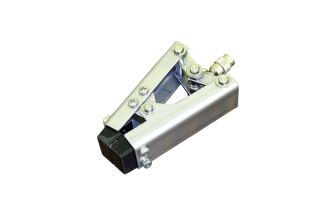

Pantograph chuck MODEL-226 Series
A chuck of pantograph construction that increases the tightening force when a tensile force is applied. Quick moun…
-
All-purpose chuck MODEL-227 Series
High grip power to securely grip samples having a small grip allowance. Two types of grip width; 20 mm and 30 mm a…
-

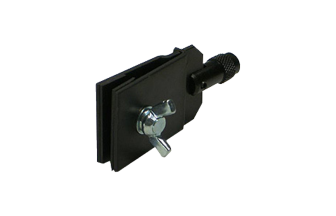

Film chuck, rubber MODEL-228G Series
Rubber sheets attached to workpiece chucking faces to chuck film. Capable of holding thin plates and wire also.Exa…
-
Film chuck, sand paper MODEL-228H Seri…
File-shaped anti-slip sheets attached to workpiece chucking faces to chuck film. Suitable for tensile test of such…
-

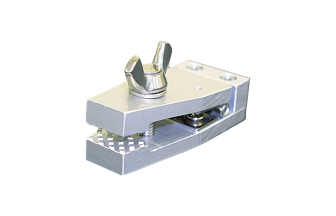

All-purpose chuck MODEL-231
A screwing type small gripping jig. A thumbscrew for strong clamping force to make this model versatile.Example of…
-

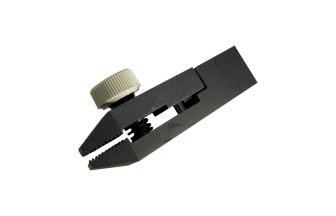

All-purpose chuck MODEL-232
Suitable for clamping small narrow samples.Example of use Tensile strength test by small loadSpecificationsMODEL-2…
-

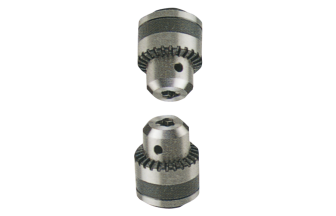

Round rod chuck TR Series
A scroll chuck jig to grip round rods. High holding power in round rod chuck tensile test.Example of use Tensile …
Show 1 to 15 of 15
