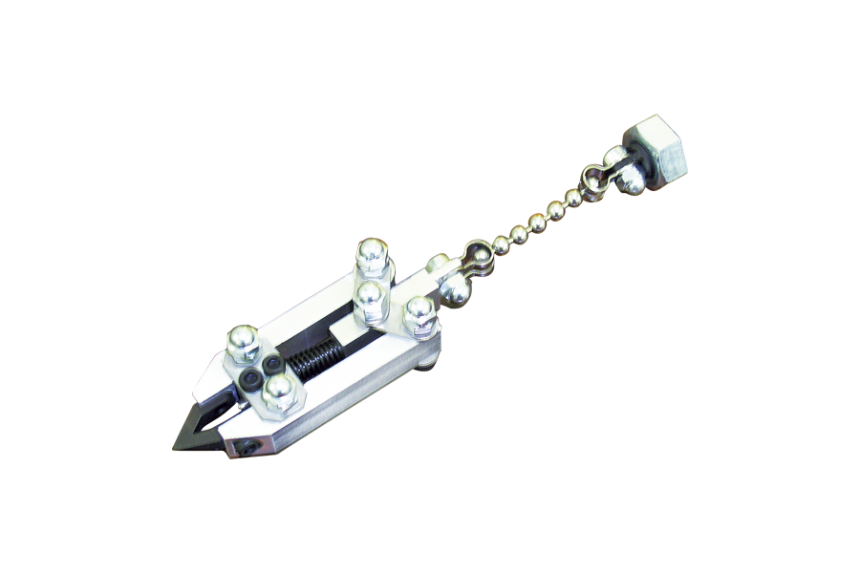

Pantograph chuck MODEL-226 Series

  • A chuck of pantograph construction that increases the tightening force when a tensile force is applied.
  • Quick mounting of workpieces.

Example of use

  • Tensile test (wire, film, etc.)
  • Tape adhesion test


MODEL-226-1 MODEL-226-5 MODEL-226-10 MODEL-226-15
Capacity 5N 100N
Jaw size (W x D mm) Tip jaw width 0.5 – 1 Tip jaw width 5 Tip jaw width 10 Tip jaw width 15
Jaw max. opening width (mm) 2
Type Pantograph type
Mounting part M6 x P1 female screw
M10 x P1.5 male screw
Mass (g) 97 100 107
Options Conversion screw
