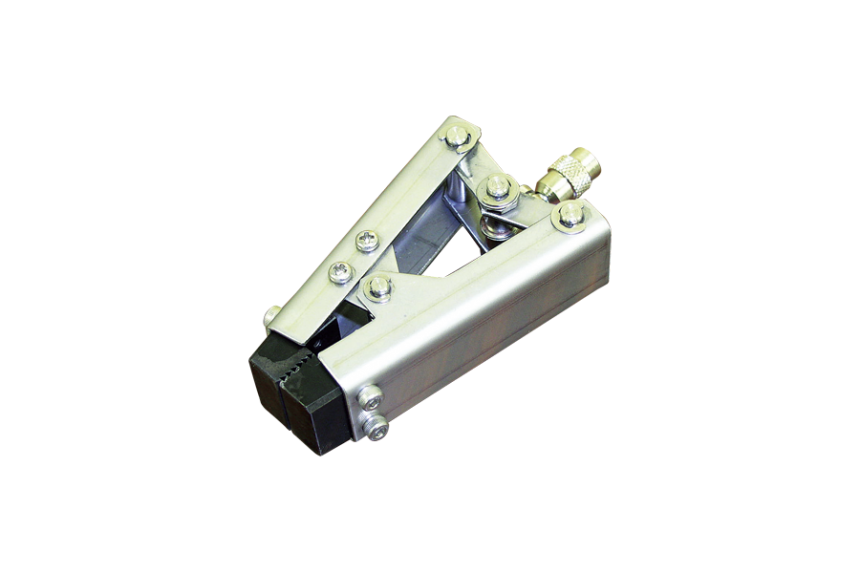

All-purpose chuck MODEL-227 Series

  • High grip power to securely grip samples having a small grip allowance.
  • Two types of grip width; 20 mm and 30 mm available.

Example of use

  • Tensile test


MODEL-227-20 MODEL-227-30
Capacity 500N
Jaw size (W x D mm) W20×D10 W30×D10
Jaw max. opening width (mm) 4
Type Pantograph type
Mounting part M6 x P1 female screw
Mass (g) 214 233
Options Conversion screw
