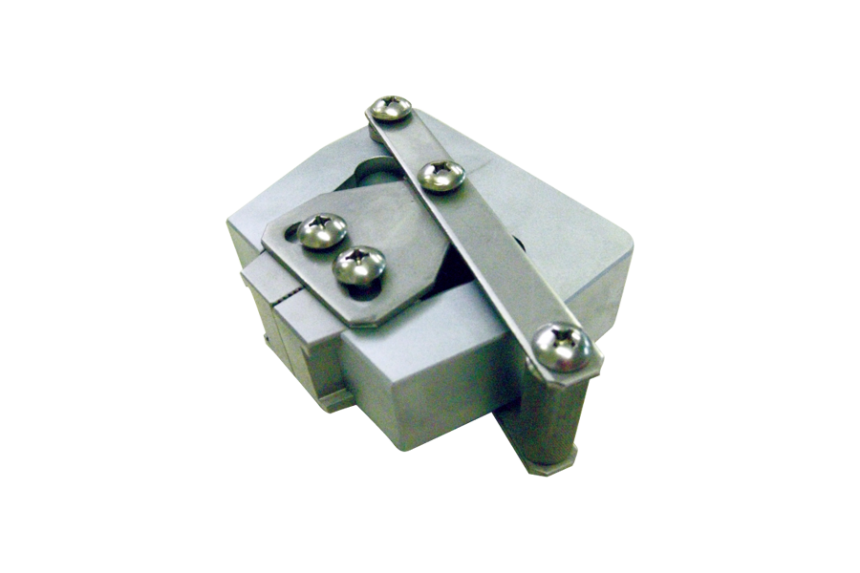

Wedge type chuck MODEL-209

  • A wedge type chuck that increases the tightening force when a tensile force is applied.
  • Little force is required in mounting to make this model suitable for inspection of parts in large quantities.

Example of use

  • Tensile strength test
  • Harness test


Capacity 5kN
Jaw size (W x D mm) W32×D30
Jaw max. opening width (mm) 10
Type Wedge type
Mounting part M20 x P1.5 female screw
Mass (g) 1800
Options Conversion screw
