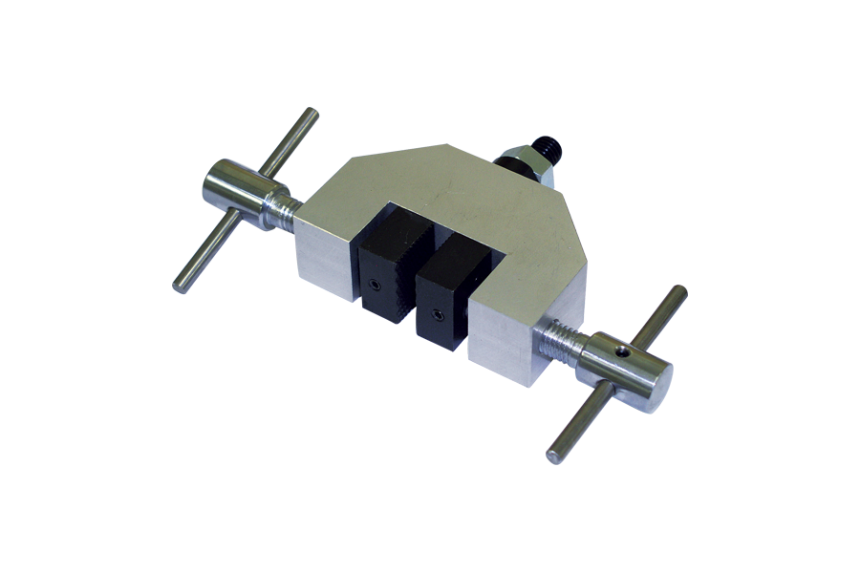

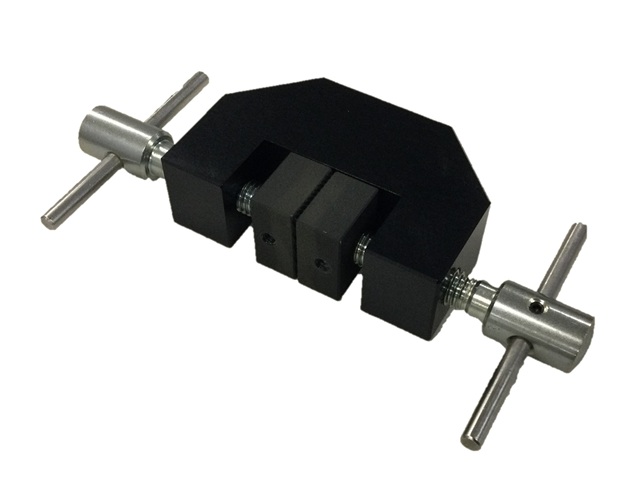

Flat chuck MODEL-203

  • All-purpose type double tightening jig of 2 kN capacity.

Example of use

  • Tensile test
  • Peeling test
  • Connector insertion/withdrawal test
  • Harness strength test


Capacity 2kN
Jaw size (W x D mm) W25×D20
Jaw max. opening width (mm) 14
Type Parallel flat plate individual screwing
Mounting part M10 x P1.5 female screw
Mass (g) 442
Options Conversion screw
