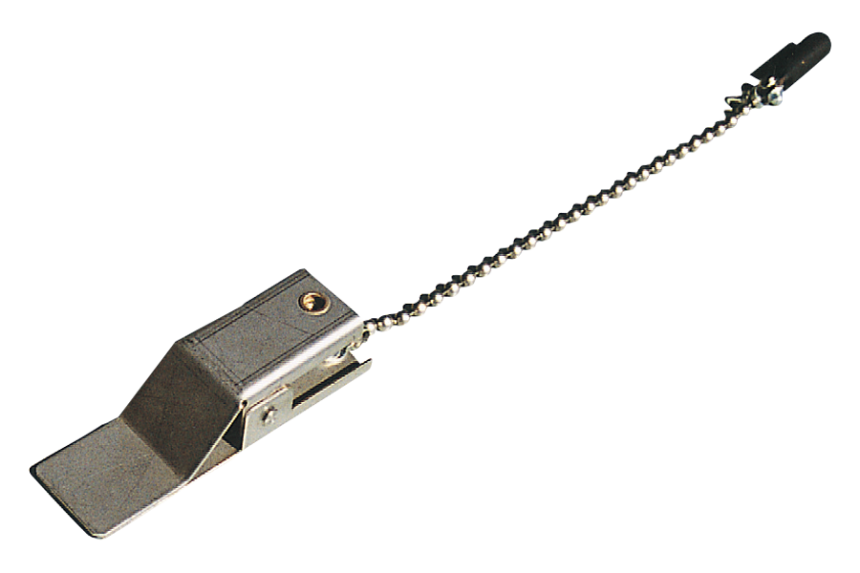

Clip type pulling jig MODEL-225

  • A clip type pulling jig for micro load.
  • Easy workpiece fixing.

Example of use

  • Micro load pull strength test

Specifications

MODEL-225
Capacity 0.5N
Jaw size (W x D mm) W25×D25
Jaw max. opening width (mm) 3
Type Clip type
Mounting part M6 x P1 female screw
Mass (g) 56
Options Conversion screw
