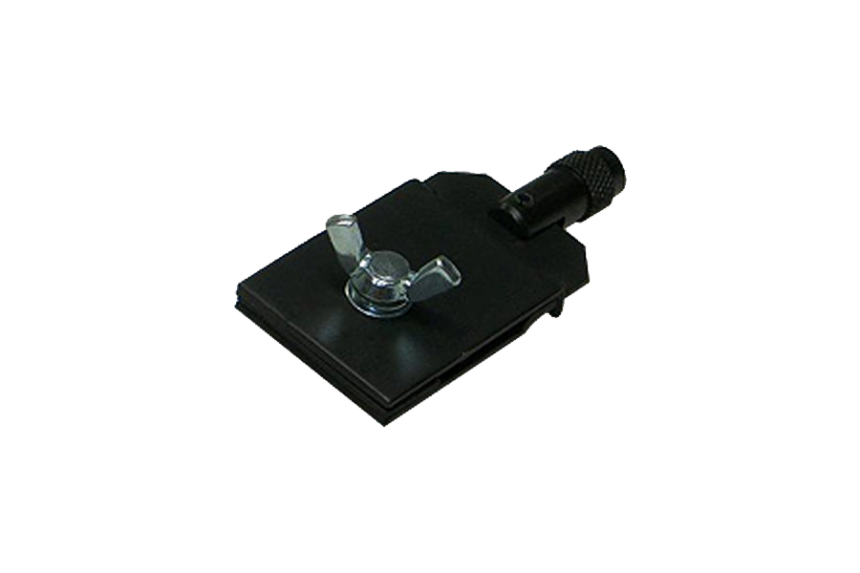

Film chuck, rubber MODEL-228G Series

  • Rubber sheets attached to workpiece chucking faces to chuck film.
  • Capable of holding thin plates and wire also.

Example of use

  • Tensile test
  • Peeling test


MODEL-228G-10 MODEL-228G-20 MODEL-228G-30 MODEL-228G-40
Capacity 20N
Jaw size (W x D mm) W10 W20 W30 W40
Jaw max. opening width (mm) 1
Type Screwing
Mounting part M6 x P1 female screw
Mass (g) 37 49 64 77
Option Conversion screw

Document download and related products

External View MODEL-228G-10(PDF)

External View MODEL-228G-20(PDF)

External View MODEL-228G-30(PDF)

External View MODEL-228G-40(PDF)
