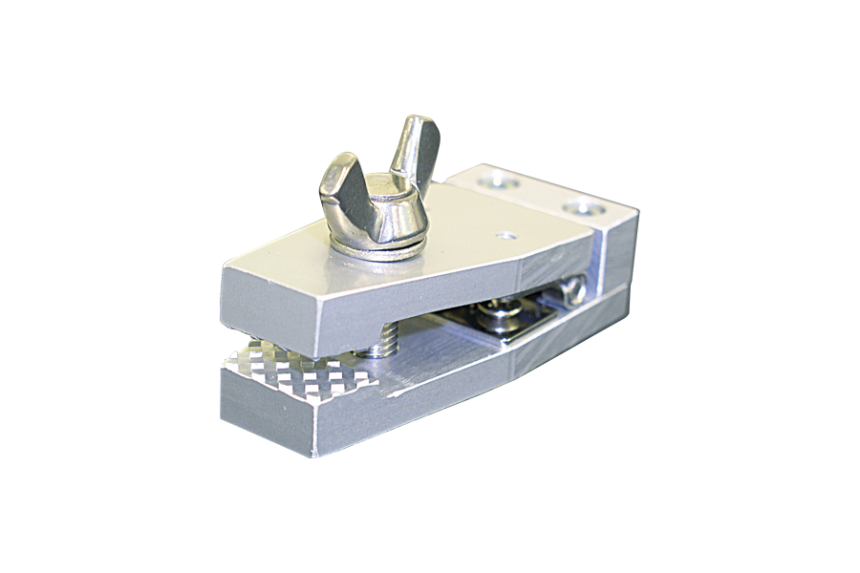

All-purpose chuck MODEL-231

  • A screwing type small gripping jig.
  • A thumbscrew for strong clamping force to make this model versatile.

Example of use

  • Tensile test jig
  • Holding of paper, film, tape, iron sheet, resin sheet

Specifications

MODEL-231
Capacity 200N
Jaw size (W x D mm) 15×10
Jaw max. opening width (mm) 3
Type Opening by spring pressure and closing by screw
Mounting part M6 x P1 female screw
Mass (g) 78
Option Conversion screw
