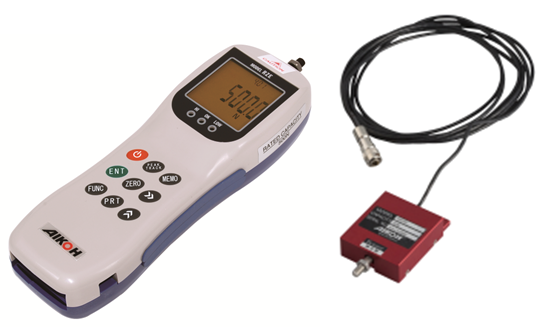

Separate type digital force gauge RZE-S-8000 Series

  • A handy type digital force gauge with a measuring part and display part separated.
  • The separate construction poses little restriction on measuring places to select.

Specifications

Model RZE-S-8001 RZE-S-8002 RZE-S-8005 RZE-S-8010 RZE-S-8020 RZE-S-8050 RZE-S-8100
Rated capacity 10N
(1kgf)
20N
(2kgf)
50N
(5kgf)
100N (10kgf) 200N (20kgf) 500N (50kgf) 1000N (100kgf)
Min. display unit 0.001N (0.1gf) 0.01N(1gf) 0.1N (10gf)
display unit N or (gf) Kgf, N, lb selectable
Accuracy ±0.2%F.S.
Sampling cycle 1 ms, 5 ms, 16 ms, 50 ms, 125 ms and 250 ms selectable
Display update interval 1, 2, 5, 10, 20 times/sec. selectable
Output

USB output
Analog voltage ±2V/F.S.
Printer output
Motorized stand control
External connection hold

Usable time 30 hours after full charge
Power supply Nickel-metal hydride battery
AC adapter MODEL-780 (AC100-240V)
Mass Approx. 375g (Main unit only)
Standard accessories

Display RZE-S
Load cell MODEL-S8000 series with cell cable (3 m)
Standard attachment
AC adapter MODEL-780(USB cable : includes MODEL-RZ-USB)

Options Software RZ-3000
I/O cable RZE-OP-1
I/O cable RZE-OP-2
Mitutoyo DP-1VR printer cable RZE-OP-3
Sanei Electric line thermal printer cable RZE-OP-4
Printer BL2-58SNWJC
jig/fixture, test stand
RZE-OP-1 : For Stand control function only
RZE-OP-2 : For Stand control function, Analog output and Comparator output
