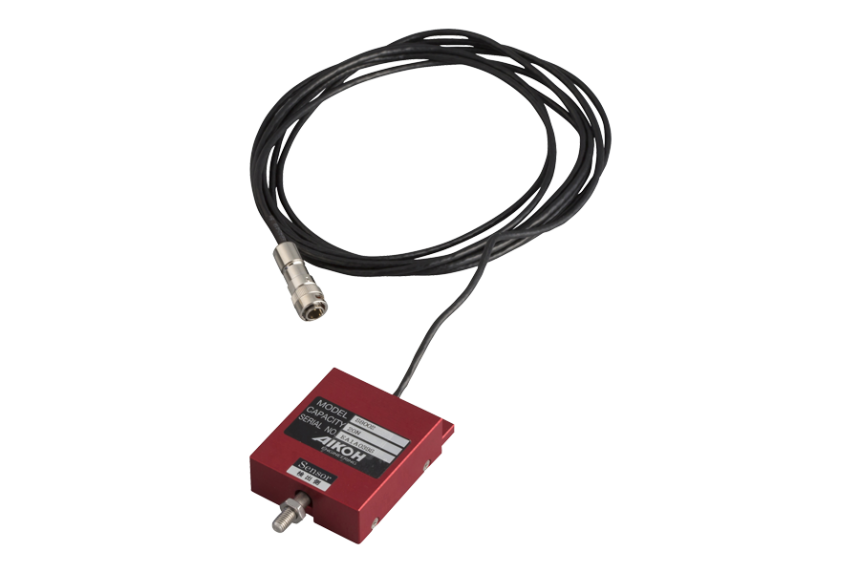

Load cell for tensile & compression tests S8000 Series

  • Measure both Tensile and Compression tests.


S8000 Series
Rated capacity 5N~1000N
Rated output 約2mV/V (5N: 1.2mV/V, 10N: 1.5mV/V)
Nonlinearity ±0.1% R.O.
Hysteresis ±0.1% R.O.
Recommended applied voltage 6V
Allowable applied voltage 10V
Input/output resistance Approx. 350 Ω
Insulation resistance 1000 MΩ or over
Temperature compensation range -10~+60℃
Allowable temperature range -20~+80℃
Zero point influence by temperature ±0.05% R.O./℃
Output influence by temperature ±0.05%/℃
Allowable overload 120%R.C.
Mass Approx. 170g
Cable length 3m
Tip shape Y terminal
