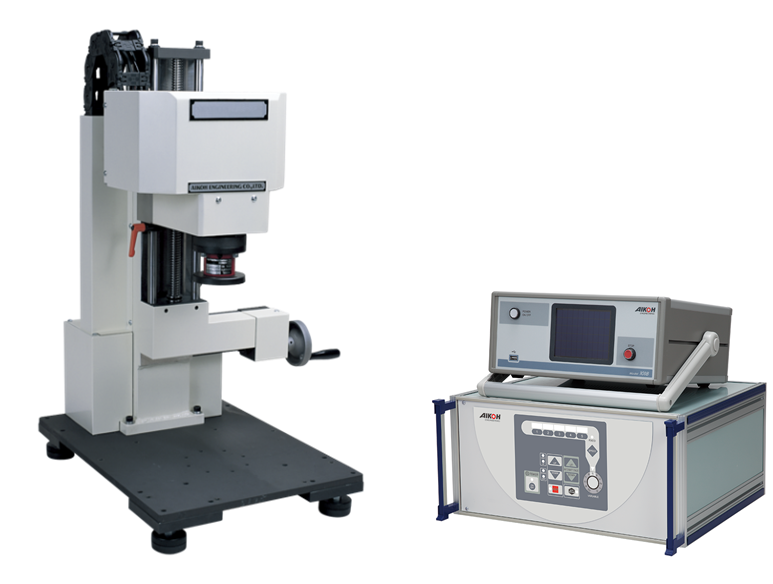

- A desktop torque tester.
- Designed to measure operating forces of switches and variable resistors and test endurance by applying torsional force.
Example of use
- Rotary switch operating force test
- Product/board torsion test
- Cap opening force test
- Screw tightening torque measurement
- Evaluation test of various complicated parts
- Test of key cylinder insertion / withdrawal
- Knob evaluation test
Specifications
|
MODEL-5401K/200 |
Max. output torque |
20N・m(2kgf・m) |
Torque accuracy |
0.01N・m |
Torque measuring amplifier |
MODEL-1018 |
Controller |
MODEL-4502K |
Test speed |
0.2~1RPM |
Z-axis stroke |
140mm |
Distance between rotation center and column |
120mm |
Table size |
W350×D320mm |
Drive motor |
DC brushless motor |
Detector |
Rotary encoder |
Angle setting |
0 – 340 degrees |
Display resolution |
0.1deg |
Display accuracy |
1deg |
Dimensions |
W490 x H742 x D480 mm |
Stand mass |
Approx. 60 kg |
Amplifier mass |
Approx. 5.2 kg |
Power supply |
Single phase, 100 VAC, 1 A |
Standard set |
Tester, torque measuring amplifier MODEL-1018, controller Model 4502K, torque meter 1 piece |
Options |
Additional torque meter, jig/fixture, software |
