- Force – displacement and torque – angle measurement.
- Switch feeling test.
- Creep test.
- Save the data to the USB flash drive.
Examples of use
- LCD touch panel.
- Four-quadrant operation necessary for reciprocal measurement realized.
- Communication rate as high as 230.4 kbps.
- Capable of calibrating loads of ten load cells maximum.
- Capable of reading force and displacement at points selected with the cursor.
Specifications

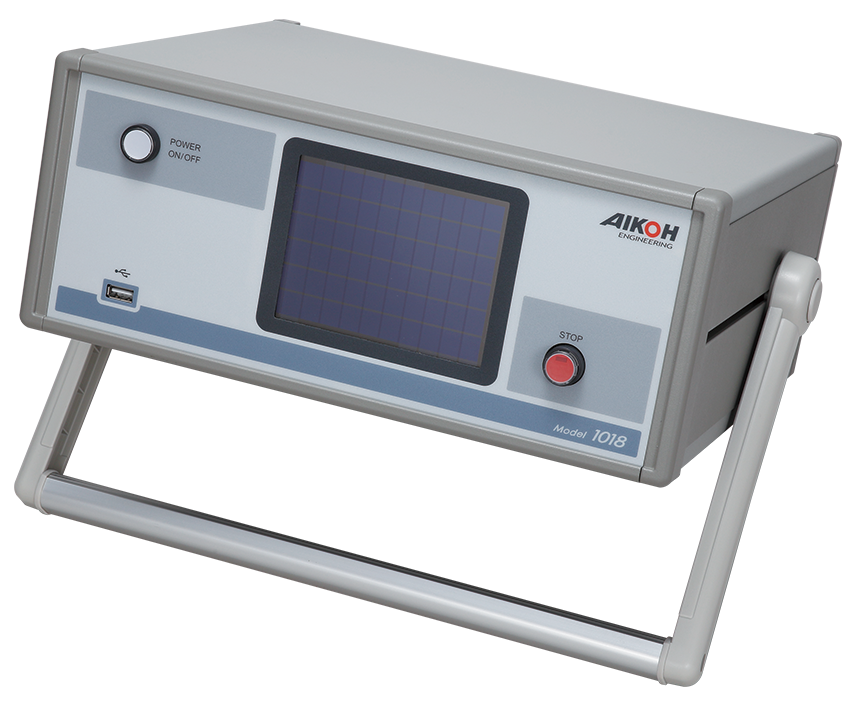

| MODEL-1018 | |
| Major application | Amplifier and stand control for force/torque tester sensors |
| Max. force | Depends on the load cell used. |
| Accuracy | Depends on the load cell used. |
| Controller | Stand control output STOP/UP/DOWN/QUICK |
| Test speed | Depends on the stand used. |
| Speed setting method | Main unit only. |
| Displacement detection method | A/B phase up/down counter x 2 channels, resolution 24 bits |
| Dimensions | W363×D280×H132.5mm |
| Mass | Approx. 5.6kg |
| Power supply | AC100V(100～110V) or AC200V(200～220V) |
