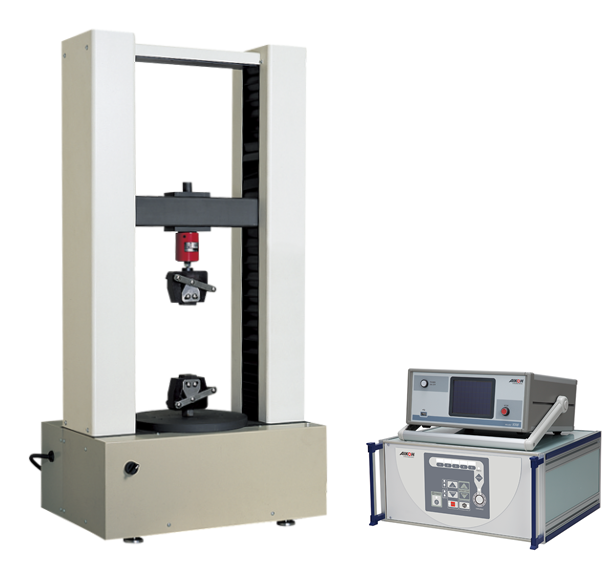

- A precision force tester up to 20 kN.
- Compact and settable on a workbench.
- Addition of small-capacity load cells enables tests of a wide range of capacities.
※Jigs are optional.
Examples of use
- Tensile/compression tests
- Strength test
- Repeat test
- Product evaluation test
- Bending test at preset displacement
Specifications
|
MODEL-1840K/2000 |
Max. force |
20kN(2000kgf) |
Force accuracy |
Depends on the load cell used. |
Force measuring amplifier |
MODEL-1018 |
Controller |
MODEL-4502K |
Test speed |
1~300mm/min |
Speed changing |
5 steps or stepless |
Stroke |
950mm |
Distance between test center and column |
175mm |
Table size |
φ300mm, center M20 x 1.5 |
Drive motor |
Servo motor |
Detector |
Rotary encoder |
Display accuracy |
0.1mm |
Dimensions |
W630×H1650×D410mm |
Stand mass |
Approx. 270kg |
Amplifier mass |
Approx. 5.2kg |
Power supply |
Single phase, 200 VAC, 10 A |
Standard set |
Tester, force measuring amplifier MODEL-1018, controller Model 4502K, load cell 1 piece |
Options |
Additional load cell, jig/fixture, software, column extension, speed 15-step setting, safety cover |
