Separate type digital force gauge RZE-S-200

  • A large capacity 2 kN type. Capable of measuring a force in a place where no power supply is available.
  • The separate construction poses little restriction on measuring places to select.

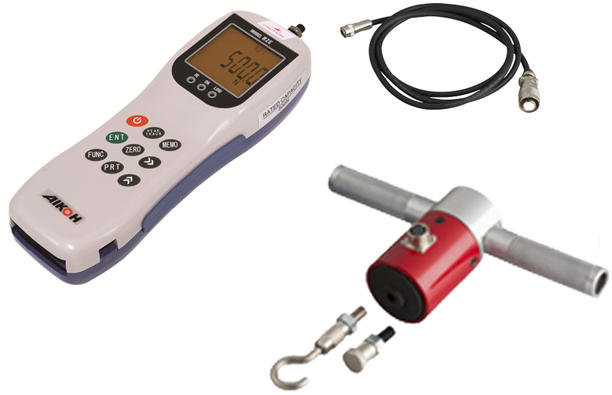

    ※Photo: The handle and hook are optional.

Specifications

RZE-S-200
Rated capacity 2kN (200kgf)
Min. display unit 1N (0.1Kgf)
Measurement unit N or Kgf・N・lb selectable
Accuracy ±0.2%F.S.
Sampling cycle 1 ms, 5 ms, 16 ms, 50 ms, 125 ms and 250 ms selectable
Display update interval 1, 2, 5, 10, 20 times/sec. selectable
Output USB output
Analog voltage ±2V/F.S.
Printer output
Motorized stand control
External contact hold
Continuous use time 30 hours after full charge
Power supply Nickel-metal hydride battery
AC adapter Model 780(100VAC – 240VAC)
Mass Approx. 375 g (Main unit only)
Standard accessories Display: RZE-S
Loadcell: MODEL-3200
Cell cable (1.5m)
AC adapter MODEL-780 (USB cable: includes MODEL-RZ-USB)
Options Software RZ-3000,
I/O cable RZE-OP-1,
I/O cable RZE-OP-2,
Mitutoyo DP-1VR printer cable RZE-OP-3,
Sanei Electric line thermal printer cable RZE-OP-4,
jig/fixture,
handle,
hook,
compression plate,
test stand,
RZE-OP-1 : For Stand control function only
RZE-OP-2 : For Stand control function, Analog output and Comparator output
