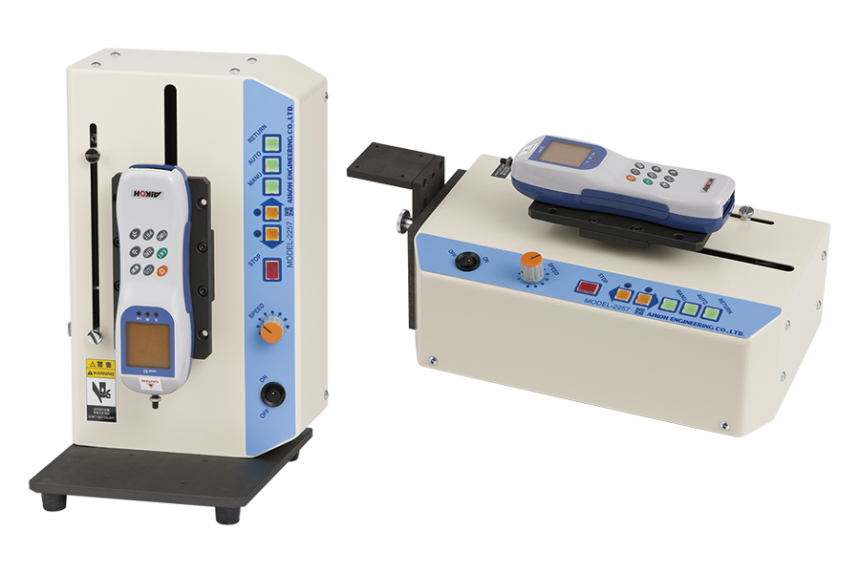

Motorized stand MODEL-2257

  • A vertical & horizontal motorized stand for force gages.
  • One unit can handle diversified tests.
  • The use of a stand control cable enables the unit to be stopped at a set force value. (Optional)

Examples of use

  • Tensile & compression tests
  • 3-point bending test
  • Joint strength test
  • Pull-out & peeling test

Specifications

MODEL-2257
Max. force 500N(50kgf)
Controller Built in
Test speed 10~200mm/min
Speed changing Variable resistor
Stroke 150mm
Distance between test center and column 49mm
Table size Vertical: W200 x D120 mm
Horizontal: W70 x D60 mm
Drive motor DC speed control motor
Dimensions W215×H380×D235mm(vertical)
Stand mass Approx. 20kg
Power supply Single phase 100 – 240 VAC, 0.5 A
Options Force gage
jig/fixture
cable
jig mounting plate OJ-P-90 (for tensile test)
