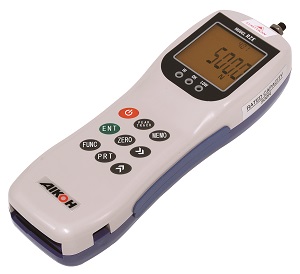

Digital force gauge RZ Series

  • Easy-to-read display.
  • Auto power off function.
  • USB data output.
  • Analog output (±2V F.S.).
  • Multiple power supplies (100 – 240 V).
  • Usable time: Approx. 30 hours after full charge.

Examples of use

  • Measurement of operating force(Switch, lever, door, drawer)
  • Measurement of strength
  • Measurement of peeling force

Specifications

RZ-1 RZ-2 RZ-5 RZ-10 RZ-20 RZ-50 RZ-100
Rated capacity 10N
(1Kgf)
20N
(2Kgf)
50N
(5Kgf)
100N
(10Kgf)
200N
(20Kgf)
500N
(50Kgf)
1000N
(100Kgf)
Min. display unit 0.001N
(0.1gf)
0.01N
(1gf)
0.1N
(10gf)
Accuracy ±0.2%F.S.
Sampling cycle 1 ms, 5 ms, 16 ms, 50 ms, 125 ms and 250 ms selectable
Display update interval 1, 2, 5, 10, 20 times/sec. selectable
Display LCD, signed, 5 digits
Output USB output
Analog voltage ±2V / F.S.
Printer output
Motorized stand control
External connection hold
Mass Approx. 375g
Power supply Nickel-metal hydride battery, AC adapter Model 780(100VAC – 240VAC)
Standard accessories

011B

012B

013B

014B

015B

016B

※Hook of 011B for RZ-100  is different from standard hook,the wire diameter is Φ4

Options Output cable, software RZ-3000, test stand, printer BL2-58SNWJC
Optional cables I/O cable RZ-OP-1, I/O cable RZ-OP-2,
Mitutoyo DP-1VR printer cable RZ-OP-3,
Sanei Electric line thermal printer cable RZ-OP-4
RZ-OP-1 : For Stand control function only
RZ-OP-2 : For Stand control function, Analog output and Comparator output
