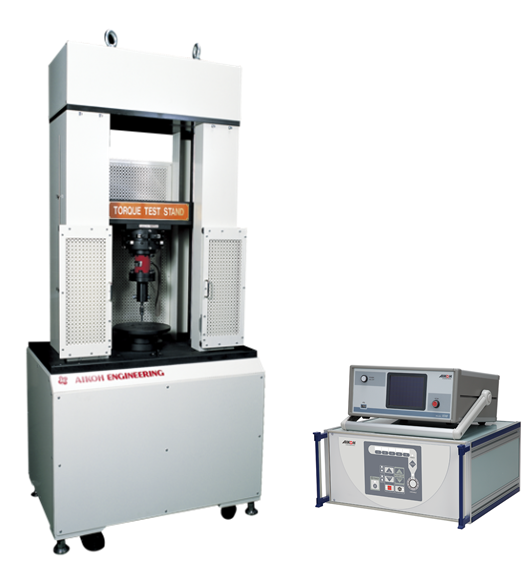

- A stationary type large-sized torque tester.
- Capable of testing the strength of individual parts such as shafts, hubs and gears and measuring the combined axial forces of gear units, cam units, etc.
Example of use
- Hub torque measurement
- Axial force measurement
- Torque breakage test
Specifications
|
MODEL-5127K/500 |
Torque capacity |
50N・m(5kgf・m) |
Torque accuracy |
±0.5%F.S. |
Torque measuring amplifier |
MODEL-1018 |
Controller |
MODEL-4502K |
Controller |
Built in |
Load table rotating speed |
0.05~2PRM |
Rotating accuracy |
±0.5% |
Rotating angle indication, setting |
±0 – 999.9 degrees |
Rotary table size |
Φ200mm |
Drive motor |
Servo motor |
Detector |
Rotary encoder |
Display accuracy |
1deg |
Amplifier mass |
Approx. 5.2 kg |
Power supply |
3-phase, 200 VAC, 10 A |
Standard set |
Tester, torque measuring amplifier MODEL-1018, controller Model 4502K, torque meter 1 piece |
Options |
Additional torque meter, jig/fixture, software, safety cover |
