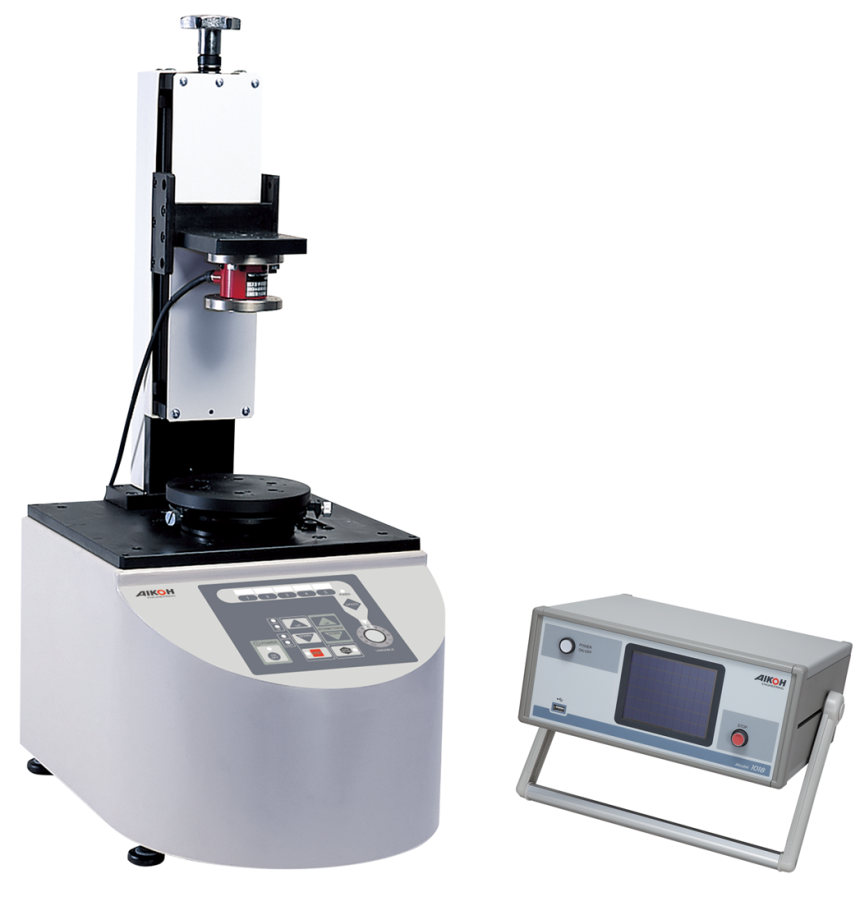

- A desktop torque tester.
- Designed to measure operating forces of switches and variable resistors and test endurance by applying torsional force.
Example of use
- Rotary switch operating force test
- Product/board torsion test
- Cap opening force test
- Screw tightening torque measurement
- Evaluation test of various complicated parts
- Torsion test of boards
- Power window feeling test
Specifications
|
MODEL-5125KW |
| Max. output torque |
5N・m（0.5kgf・m） |
| Torque accuracy |
0.01N・m |
| Torque measuring amplifier |
MODEL-1018 |
| Controller |
Built in |
| Test speed |
0.1～20RPM |
| Speed changing |
5 steps or stepless |
| Z-axis stroke |
210mm |
| Distance between rotation center and column |
110mm |
| Table size |
Φ150mm |
| Drive motor |
Servomotor |
| Detector |
Rotary encoder |
| Angle setting |
0 – 340 degrees or continuous |
| Display resolution |
0.1deg |
| Display accuracy |
1deg |
| Dimensions |
W350×H767×D475mm |
| Stand mass |
Approx. 55 kg |
| Amplifier mass |
Approx. 5.2 kg |
| Power supply |
Single phase, 100 VAC – 240 VAC, 0.5 A |
| Standard set |
Tester, torque measuring amplifier MODEL-1018, torque meter 1 piece |
| Options |
Additional torque meter, jig/fixture, software |
