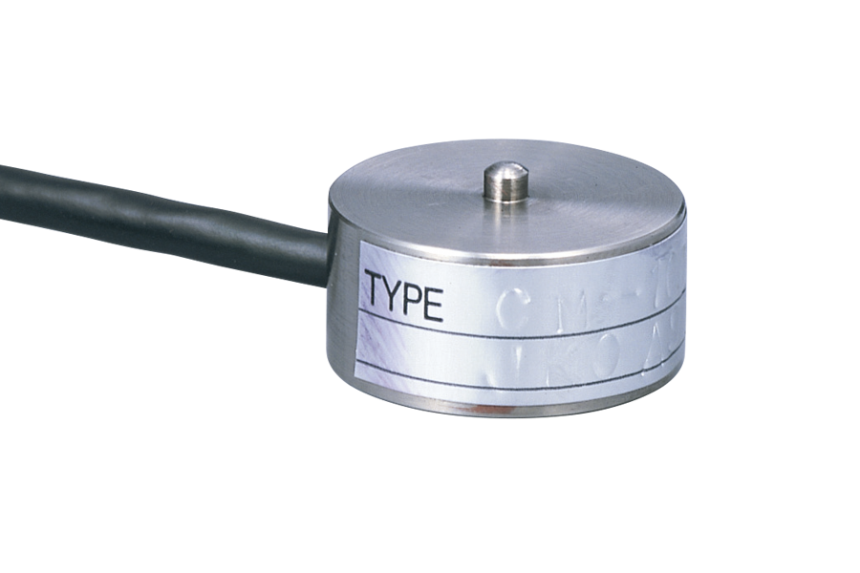

Small load cell for compression test CK Series

  • A small-sized load cell dedicated to compression test.
  • Most suitable for measurement of loads in a limited space.

Example of use

  • Useful for measurement of load distribution, etc. by use of several load cells.


CK Series
Rated capacity 100N~20kN
Rated output 100N~1kN : 1mV/V±20%
2kN~20kN : 1.5mV/V±20%
Nonlinearity 100N~1kN : ±1%R.O.
2kN~20kN : ±2%R.O.
Hysteresis 100N~1kN : ±1%R.O.
2kN~20kN : ±2%R.O.
Repeatability 1%R.O.
Recommended applied voltage 5V
Allowable applied voltage 7V
Input/output resistance 350Ω±2.5%(100N~1kN : ±2%)
Insulation resistance 1000MΩ以上
Temperature compensation range -5~+65℃ (2~20kN : -5~+50℃)
Allowable temperature range -10~+70℃ (2~20kN : -10~+60℃)
Zero point influence by temperature ±0.5%R.O./℃
Output influence by temperature ±0.05%R.O./℃
Allowable overload 120%R.C.
Cable length 3m(100~1kN : 2m)
Tip shape Loose end
