- A small-sized, light-weight, low-priced simple digital indicator.
- Data hold function.
- Peak hold function.
- External reset function.
- One-touch auto zero function.
- High and low values settable as desired.
- Analog output.
Example of use
- Load indicator
- Weight indicator
Specifications

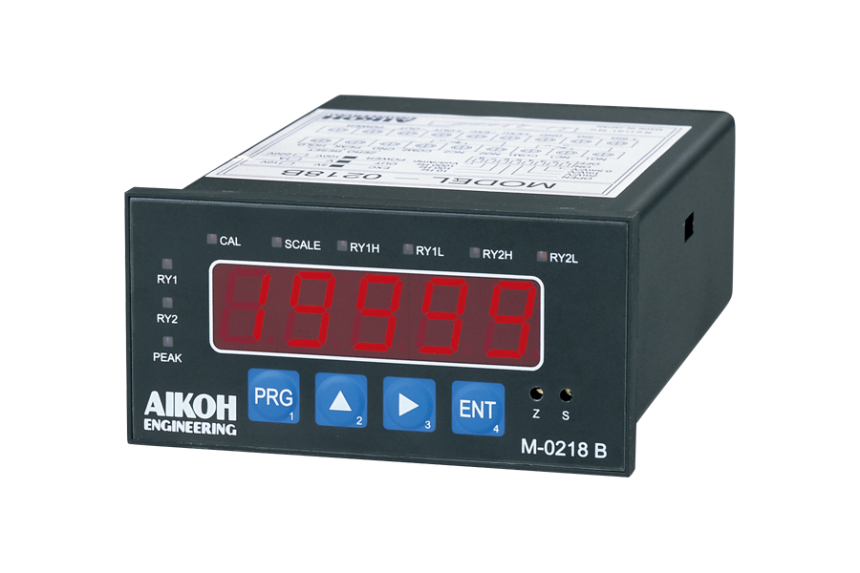

| MODEL-0218B | |
| Applied voltage | 5 VDC |
| Signal input range | DC0.5～3.5mV/V |
| A/D conversion speed | 15 times/sec. |
| Analog output | Voltage: 0 – ±10 VDC, current: 0 (4) – 20 mA |
| Indication range | 99999、－19999 |
| Response | 10、100、1kHz |
| Power supply | Any of 100 VAC, 110 VAC, 200 VAC and 220 VAC specifiable when placing an order |
| Dimensions | W96×H48×D138.5mm |
| Mass | Approx. 2 kg |
| Option | Load cell |
