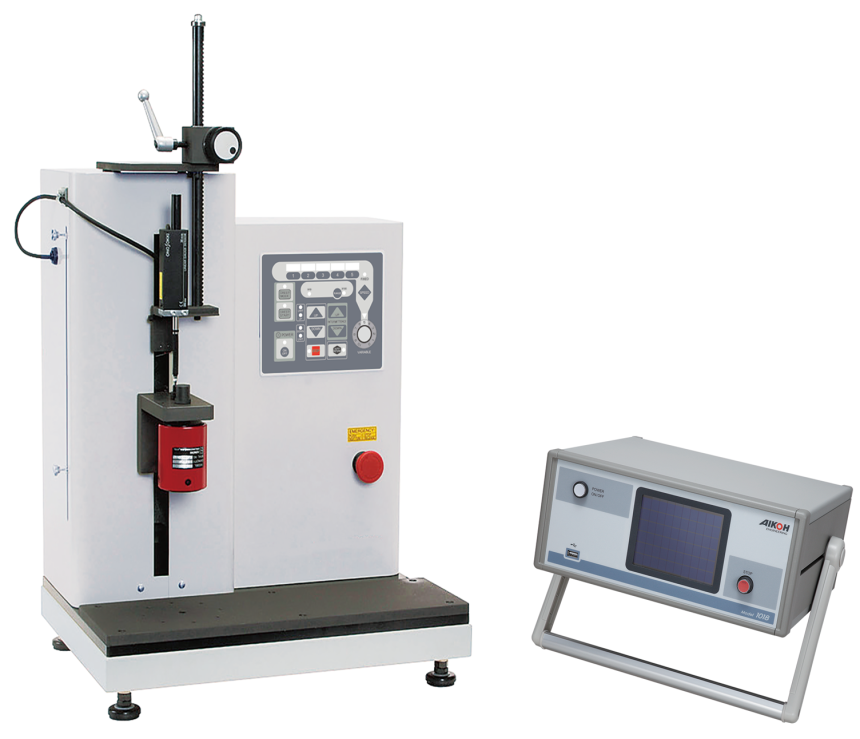

Precision force tester MODEL-1605K

  • A desktop precision force tester.
  • Most suitable for connector evaluation test.
  • Force minimum display 0.001 N (when 5N load cell is used).
  • Most suitable for testing small (miniature) parts.
  • Capable of switch feeling test also.

Examples of use

  • Product evaluation test
  • 3-point bending test
  • Switch feeling test
  • Connector evaluation test
  • Bending test at preset displacement

Specifications

MODEL-1605K
Max. force 500N(50kgf)
Force accuracy Depends on the load cell used.
Force measuring amplifier MODEL-1018
Controller Built in
Test speed 0.5~600mm/min
Speed changing 15 steps or stepless
Stroke 255mm
Distance between test center and column 100mm
Table size W475× D150mm M10×1.5
Drive motor Servo motor
Detector Rotary encoder
Display accuracy 0.1mm
Dimensions W480×H578×D375mm
Stand mass Approx. 44 kg
Amplifier mass Approx. 5.2 kg
Power supply Single phase, 100 VAC – 240 VAC, 5A
Standard set Tester, force measuring amplifier MODEL-1018, load cell 1 piece
Options Additional load cell, jig/fixture,

ON/OFF detector Model 0219
