- Highly rigid to make this model suitable for evaluation test and break test of various materials.
- Capable of control at set force values and displacement amount to enable successive repeated tests as a standard feature.
Examples of use
- Tensile test
- Compression test
- Strength test
- Force test of welded part
Specifications
|

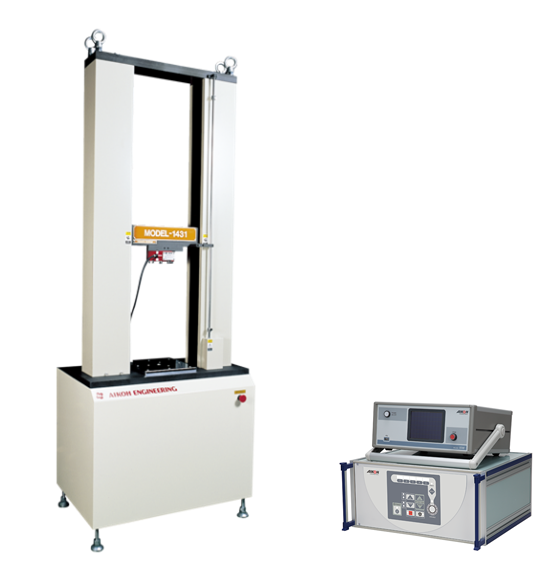

MODEL-1431K/5000 |
| Max. force |
50kN（5000kgf） |
| Force accuracy |
Depends on the load cell used. |
| Force measuring amplifier |
MODEL-1018 |
| Controller |
MODEL-4502K |
| Test speed |
0.5～300mm/min |
| Speed changing |
5 steps or stepless |
| Stroke |
1000mm |
| Distance between test center and column |
200mm |
| Table size |
□290mm M20×1.5 |
| Drive motor |
Servo motor |
| Detector |
Rotary encoder |
| Display accuracy |
0.1 mm (resolution 0.01 mm) |
| Dimensions |
W900×H2345×D600mm |
| Stand mass |
Approx. 450kg |
| Amplifier mass |
Approx. 5.2kg |
| Power supply |
3-phase, 200 VAC, 10 A |
| Standard set |
Tester, force measuring amplifier MODEL-1018, controller Model 4502K, load cell 1 piece |
| Options |
Additional load cell, jig/fixture, software, safety cover |
