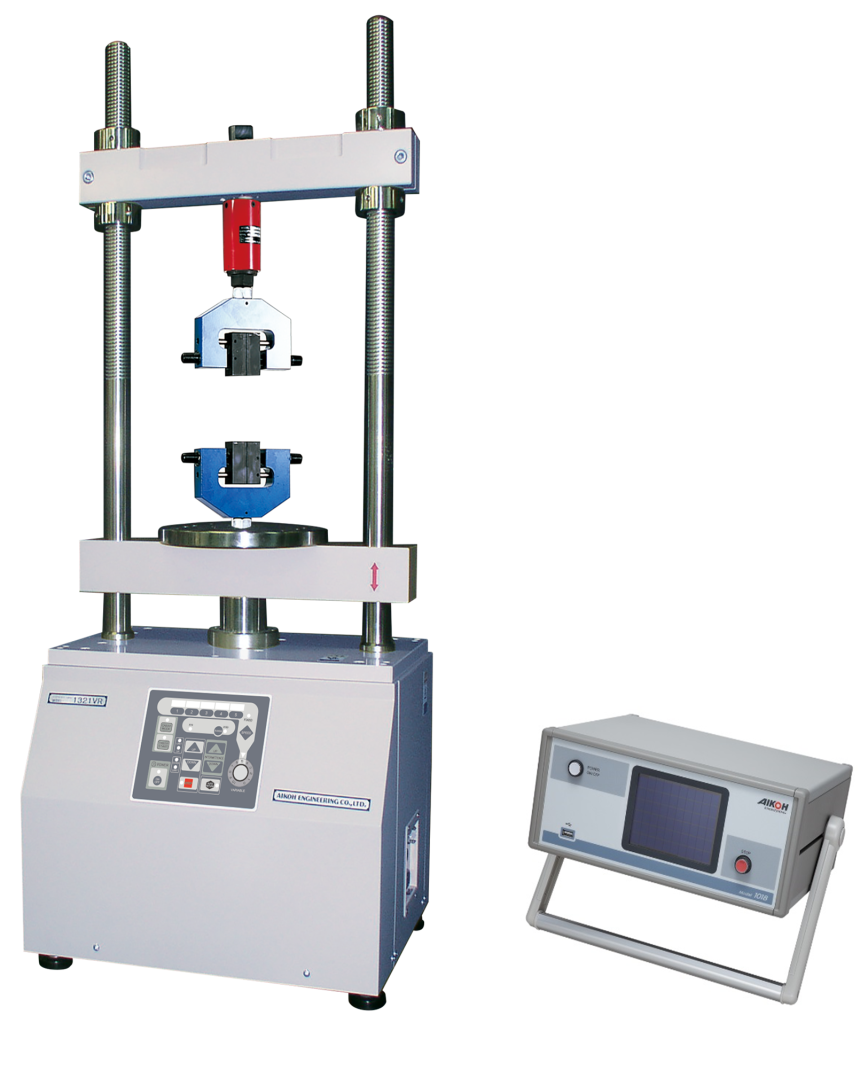

- A large force tester with the table moving up and down.
- No displacement meter.
- High rigidity to make this model suitable for various break tests.
※Jigs are optional
Examples of use
- Tensile test
- Compression test
- Break test
- 3-point bending test
- Force test of welded part
Specifications
|
MODEL-1322K |
| Max. force |
5kN（500kgf） |
| Force accuracy |
Depends on the load cell used. |
| Force measuring amplifier |
MODEL-1018 |
| Controller |
Built in |
| Test speed |
2～60mm/min |
| Speed changing |
5 steps or stepless |
| Stroke |
150mm |
| Distance between test center and column |
180mm |
| Table size |
φ250mm, center M20 x 1.5 |
| Drive motor |
DC brushless motor |
| Detector |
None |
| Dimensions |
W510×H1220×D400mm |
| Stand mass |
Approx. 120 kg |
| Amplifier mass |
Approx. 5.2 kg |
| Power supply |
Single phase, 100 VAC – 240 VAC, 5A |
| Standard set |
Tester, force measuring amplifier MODEL-1018, load cell 1 piece |
| Options |
Additional load cell, jig/fixture, software, column extension, safety cover |
