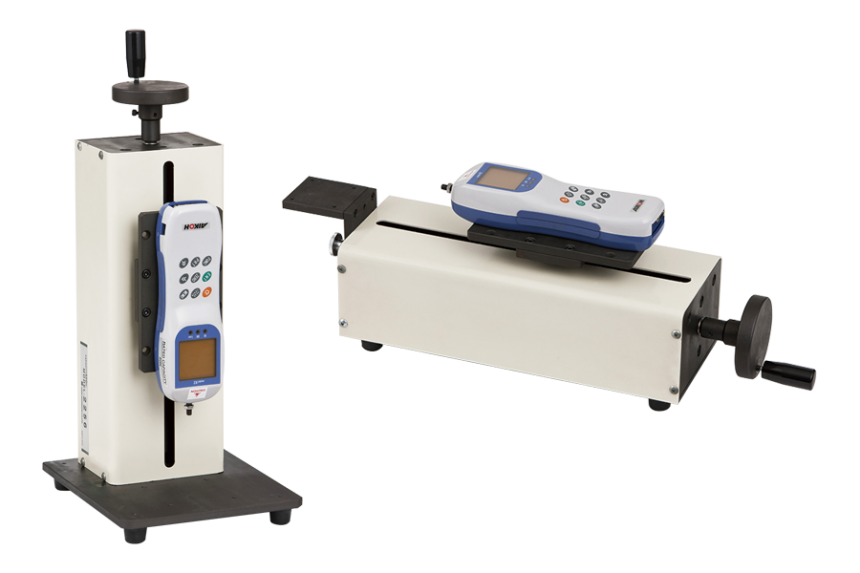

Manual stand MODEL-2256

  • Can be used both in vertical and horizontal installation.
  • Movement by turning the feed screw enables testing of large force at small load.
  • Stoppable under loaded condition.

Examples of use

  • Tensile & compression tests
  • Strength test
  • Peeling test

Specifications

MODEL-2256
Max. force 500N(50kgf)
Test speed Manual
Stroke 240 mm, movement by 3 mm by one turn of handle
Table size Vertical: W200 x D120 mm
Horizontal: W70 x D60 mm
Dimensions W200 x H500 x D150 mm (handle included)
Stand mass Vertical: Approx. 16 kg
Horizontal: Approx. 12 kg
Options Force gage
jig/fixture
cable
jig mounting plate OJ-P-90 (for tensile test)
