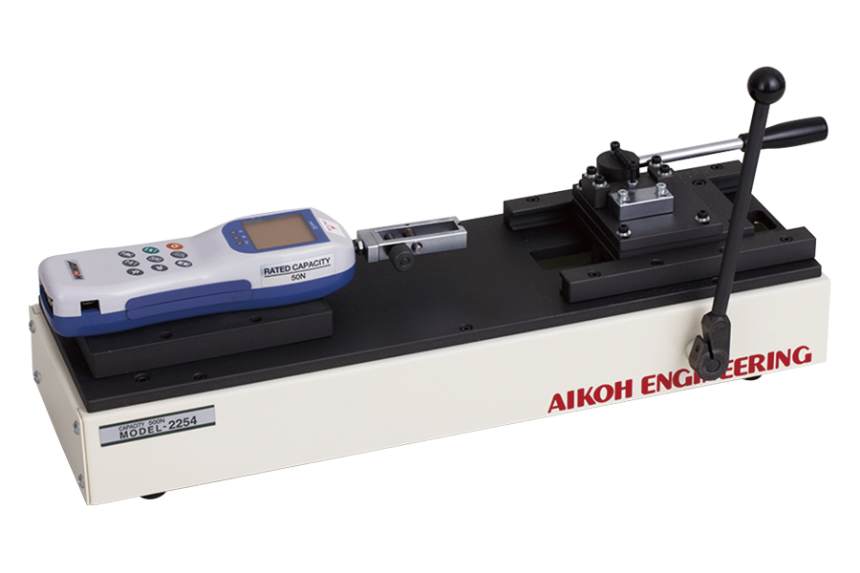

Wire harness withdrawal force tester MODEL-2254

  • This is a tester to measure the wire harness withdrawal force using the chuck included as a standard accessory.
  • High operability and easy workpiece change.

Examples of use

  • Wire harness withdrawal force test


Force capacity 500N(50kgf)
Test speed Manual
Stroke 70mm
Dimensions W525×H150×D200mm
Stand mass Approx. 15 kg
Standard set Tester, Model 2254 dedicated chuck
Options Force gage
