- Feeling (torque-angle) test of on-board rotary switches.
- Waveform data shown on a PC in real time.
- Switch ON-OFF point detection; 8 points max.
- Any of non-voltage contact measurement, contact voltage drop point measurement and resistance measurement selectable.
Specifications

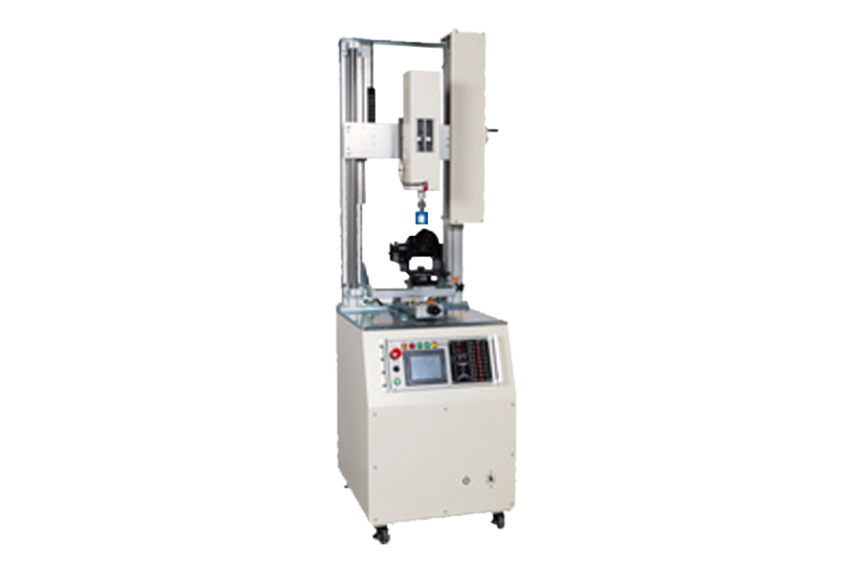

| MODEL-1910/2 | |
| Main unit and controller specifications | |
| Max. load | 2000mN・m |
| Test speed | 6～600 mm/min. variable |
| Move speed | Low, middle, high |
| Torque detection method | Torque meter Model QFR-02K |
| Torque display resolution | 2000.0mN・m |
| Measuring load accuracy | ±0.3%F.S. |
| Angle detection method | Motor pulse |
| Max. measuring range | 400.0 deg |
| Distance measurement accuracy | Within ±0.1 deg |
| Contact ON-OFF point detection | 8 contacts, non-voltage or voltage drop point |
| Contact resistance measurement | Voltage drop measurement |
| Control | PLC |
| Tester – PC communication | Ethernet |
| Dimensions | W600 x D700 x H2052 mm |
| Mass | Approx. 240 Kg |
| Power supply | 100VAC/200VAC ±10％ |
| Jig/fixture (Optional) | |
| Manual X-Y stage | Manual X-Y stage±100mm |
| Manual tilt-horizontal rotary stage | Tilt ±90 deg, rotation 360 deg |
| Standard set | Tester Torque meter Model QFR-02K Dedicated software |
| Options | Personal computer Manual X-Y stage Manual tilt-horizontal rotary stage |
