- Feeling (load-distance) test of on-board push switches.
- Waveform data shown on a PC in real time.
- Switch ON-OFF point detection; 8 points max.
- Any of non-voltage contact measurement, contact voltage drop point measurement and resistance measurement selectable.
Specifications

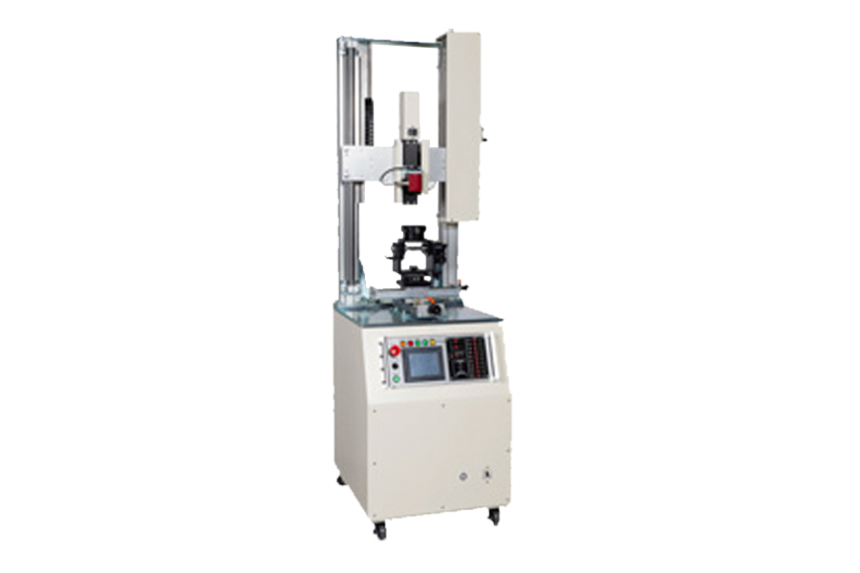

MODEL-1910/1 | |
Main unit and controller specifications | |
Max. load | 200N |
Test speed | 3~600 mm/min. variable |
Move speed | Low, middle, high |
Load detection method | Load cell Model 3020 |
Load display resolution | 0.01N |
Measuring load accuracy | ±0.2%F.S. |
Distance detection method | Motor pulse |
Max. measuring range | 145 mm |
Distance measurement accuracy | Within ±0.05 mm |
Contact ON-OFF point detection | 8 contacts, non-voltage or voltage drop point |
Contact resistance measurement | Voltage drop measurement |
Control | PLC |
Tester – PC communication | Ethernet |
Dimensions | W600 x D700 x H2052 mm |
Mass | Approx. 240 Kg |
Power supply | 100VAC/200VAC ±10% |
Jig/fixture (Optional) | |
Manual X-Y stage | Manual X-Y stage±100mm |
Manual tilt-horizontal rotary stage | Tilt ±90 deg, rotation 360 deg |
Standard set | Tester Load cell Model 3020 Dedicated software |
Options | Personal computer Manual X-Y stage:MODEL-1910- XY250 Manual tilt-horizontal rotary stage:MODEL-1910-TILT |
