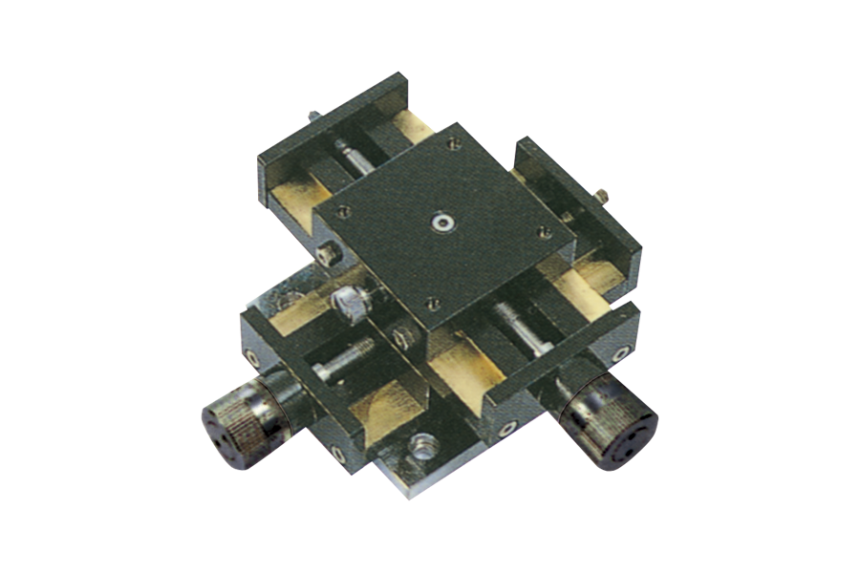

X-Y table MODEL-330

  • Used together with a vise, board holder, etc. for accurate positioning.
  • Sufficient strength for force tests.

Example of use

  • Centering or micro feeding of test pieces


Max. force 2kN
Withstand tensile load 100N
Feed amount 1 mm/rotation
X-axis travel ±25mm
Y-axis travel ±25mm
Table size (W x D mm) W55×D60
Mass (g) 1200
Option Mounting plate
