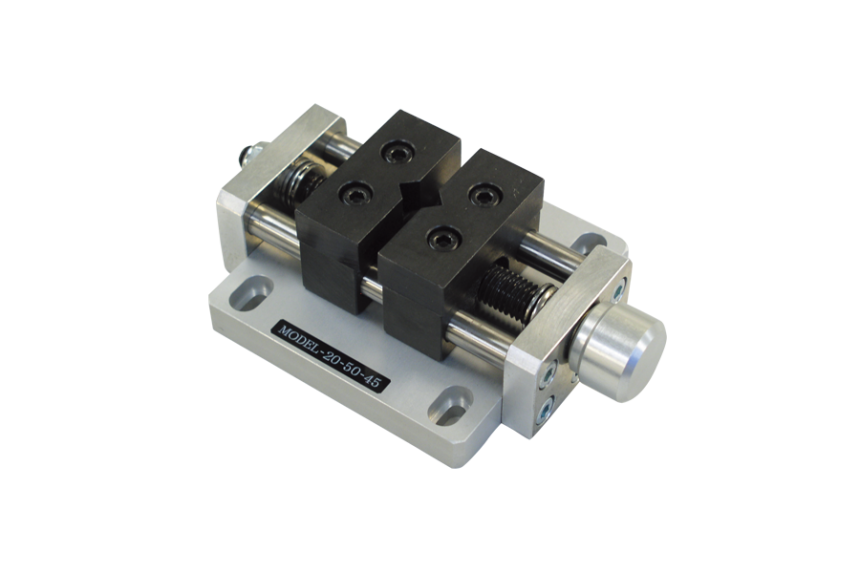

Small double side opening vise MODEL-220-50-45

  • A double side opening vise of small size and small capacity.
  • A wide scope of application as it can be used for both tensile test and compression test.
  • Clamp faces exchangeable with specially made clamp faces.

Example of use

  • Small part gripping
  • Connector insertion/withdrawal test (connector gripping)
  • Harness test (crimping terminal gripping)


Capacity 500N
Jaw size (W x D mm) 50×45
Jaw max. opening width (mm) 0~45
Type Right-hand/left-hand thread
Mounting part Secured in M5 counterbore hole
Mass (g) 958
Option Mounting plate
