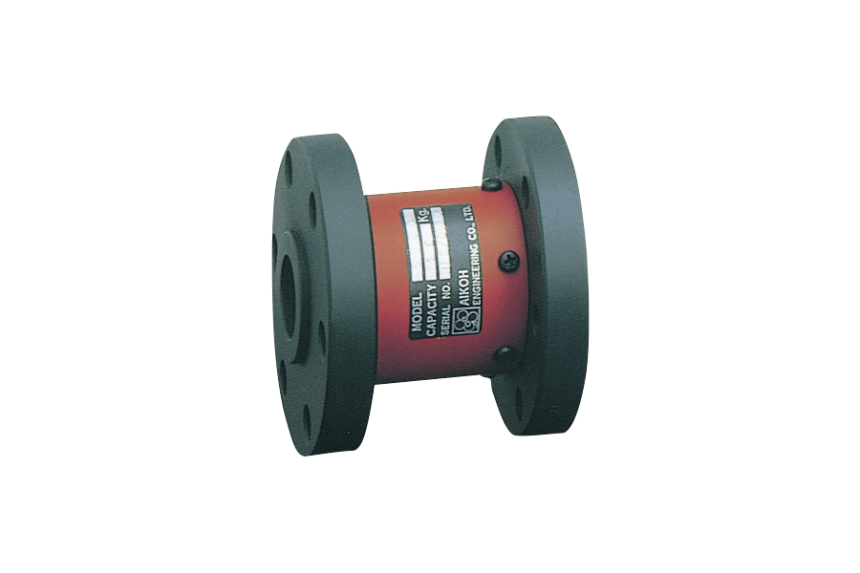

Non-rotary type torque meter QF Series

  • A non-rotary type torque meter to measure stationary torque or torque within a small angle range.
  • Torque is detected when a rotating force is applied to one side with the other side kept fixed.

Example of use

  • Performance test of various mechanical components

Specifications

QF Series
Rated capacity 0.2N・m～1kN・m
Rated output 1mV/V±1％
Nonlinearity 0.3％R.O.
Hysteresis 0.3％R.O.
Repeatability 0.1％R.O.
Recommended applied voltage 10V（1N・m以下は6V）
Allowable applied voltage 15V（1N・m以下は10V）
Input/output resistance 350Ω±2%
Insulation resistance 2000 MΩ or over
Temperature compensation range -10～+70℃
Allowable temperature range -20～+80℃
Zero point influence by temperature ±0.01％R.O./℃
Output influence by temperature ±0.01％R.O./℃
Allowable overload 150％R.C.
Cable length 3m
Tip shape Y terminal
