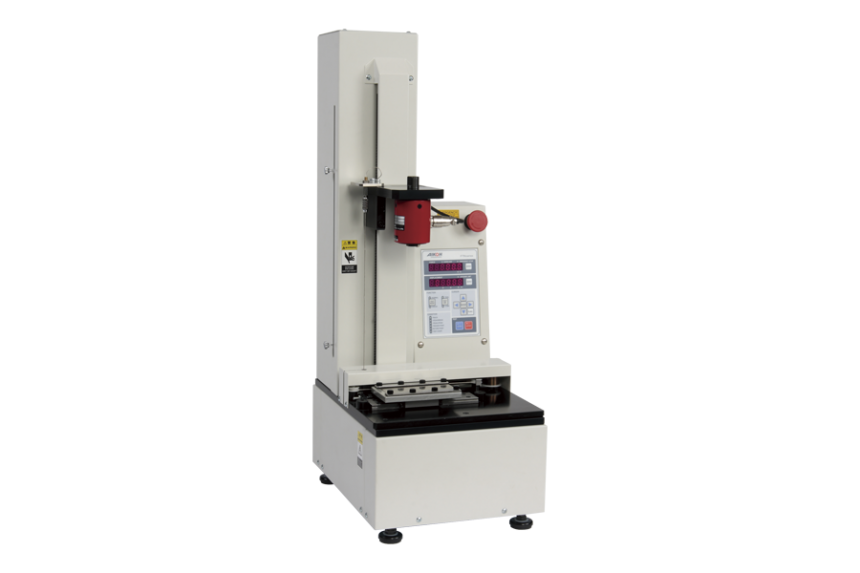

Peeling tester FTN4-15A

  • A peeling tester based on FTN1-13A.
  • Peeling speed up to 1000 mm/min.
  • Jig to enable 90-degree peeling to meet JIS Z0237 and peeling test dedicated software FTN-2008P ready for use.

Example of use

  • Peeling test

Specifications

FTN4-15A
Major application Peeling test
Max. force 50N (5Kgf)
Force accuracy Depends on the load cell used.
Force measuring amplifier Built in
Controller Built in
Test speed 5~1000 mm/min.
Speed changing Numeric input (Settable on the PC)
Stroke 100 mm or more (when 90-deg peeling jig installed),390mm (when no jig installed)
Displacement resolution 0.01 mm
Display accuracy ±0.5 mm
Table size W174 x D200 mm
Mass Approx. 35 kg
Dimensions W300 x D400 x H830 mm
Power supply Single phase, 100VAC – 240VAC 3A
Standard set Tester, load cell 1 piece, software
Options Peeling jig, additional load cell
