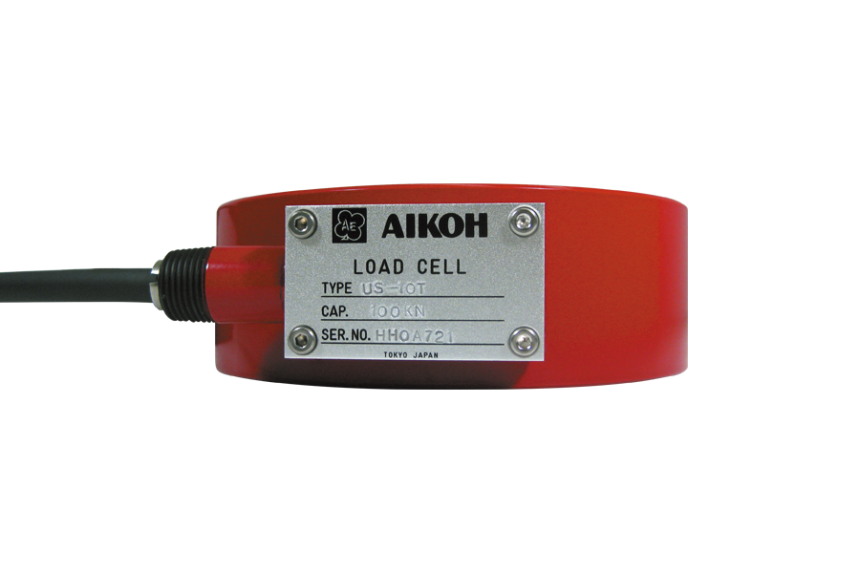

Load cell for tensile & compression tests US Series

  • A large-capacity and highly precise load cell for tensile and compression tests.
  • Highly resistant to the bending moment to make this model suitable for such tests as fatigue test and repeated load test of workpieces.


US Series
Rated capacity 10kN~500kN
Rated output 2mV/V±0.25%
Nonlinearity 0.1%R.O.
Hysteresis 0.1%R.O.
Repeatability 0.1%R.O.
Recommended applied voltage 10V
Allowable applied voltage 15V
Input/output resistance 350Ω±2%
Insulation resistance 1000 MΩ or over
Temperature compensation range -10~+70℃
Allowable temperature range -20~+80℃
Zero point influence by temperature ±0.005%R.O./℃
Output influence by temperature ±0.005%R.O./℃
Allowable overload 150%R.C.
Cable length 3m
Tip shape Y terminal
