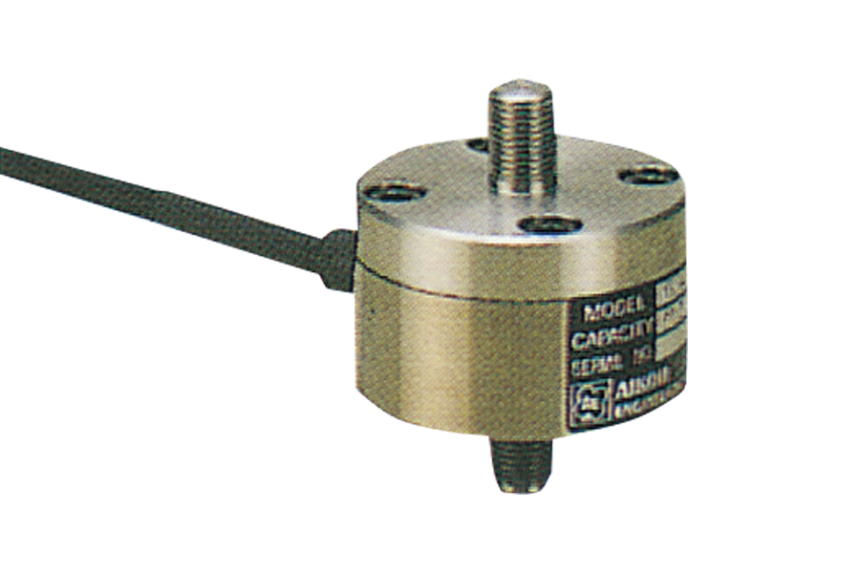

Small & high performance load cell for tensile & compression tests DUD Series

  • Made of stainless steel to ensure high corrosion resistance.
  • A small-sized, light-weight and high-performance load cell for both tension and compression.

Specifications

DUD Series
Rated capacity 500N~20kN
Rated output 2mV/V±1%
Nonlinearity 0.15%R.O.
Hysteresis 0.1%R.O.
Repeatability 0.1%R.O.
Recommended applied voltage 10V
Allowable applied voltage 15V
Input/output resistance 350Ω±2%
Insulation resistance 1000 MΩ or over
Temperature compensation range -10~+70℃
Allowable temperature range -20~+80℃
Zero point influence by temperature ±0.01%R.O./℃
Output influence by temperature ±0.01%R.O./℃
Allowable overload 150%R.C.
Cable length 3m
Tip shape Y terminal
