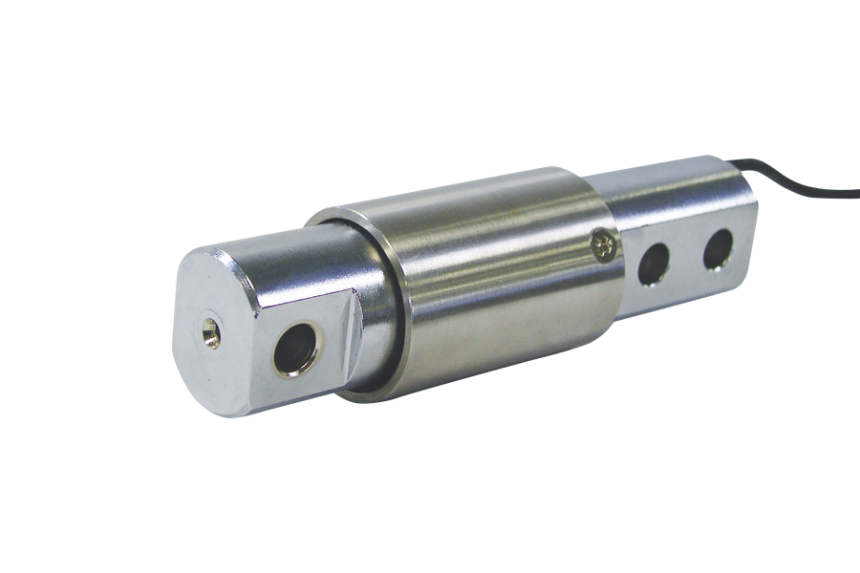

Load beam CB Series

  • A load cell generally used for measurement.

Example of use

  • Widely used in hopper scales and platform scales.

Specifications

CB Series
Rated capacity 50N~10kN
Rated output 2mV/V±10%
Nonlinearity 0.05%R.O.
Hysteresis 0.05%R.O.
Repeatability 0.03%R.O.
Recommended applied voltage 10V
Allowable applied voltage 15V
Input/output resistance 350Ω±2%
Insulation resistance 1000 MΩ or over
Temperature compensation range -10~+70℃
Allowable temperature range -20~+80℃
Zero point influence by temperature ±0.01%R.O./℃
Output influence by temperature ±0.01%R.O./℃
Allowable overload 150%R.C.
Cable length 3m
Tip shape Y terminal
