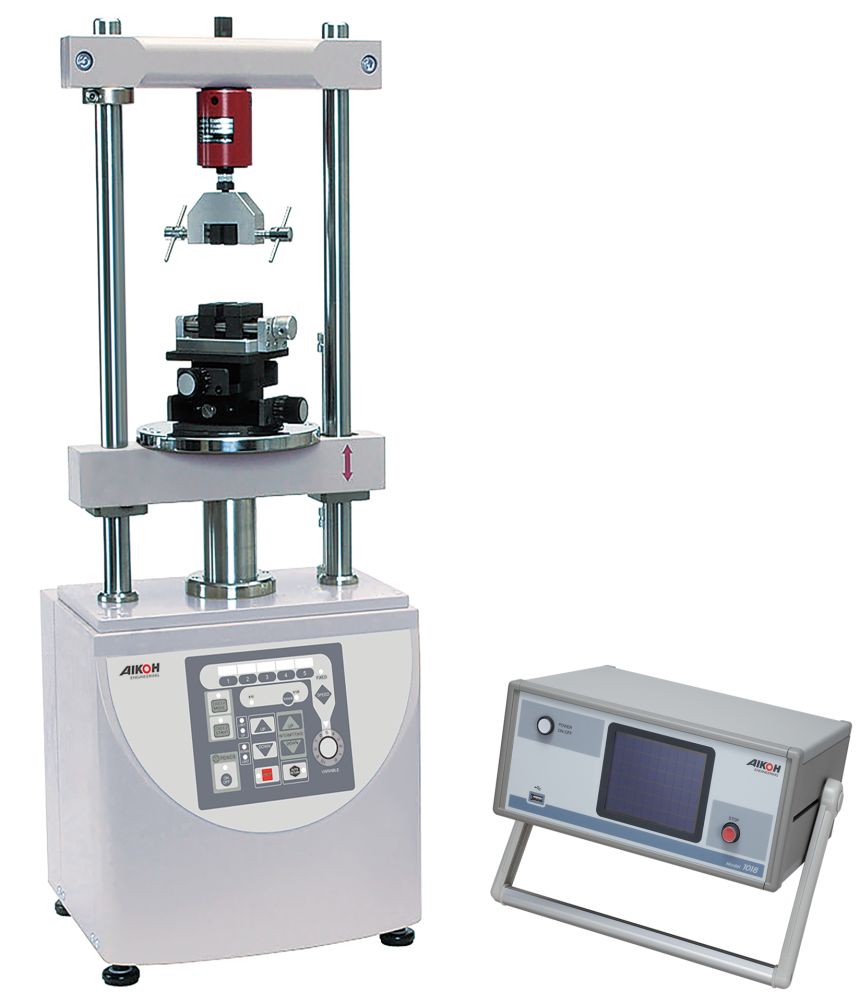

- A desktop force tester with the table moving up and down.
- Compact but large force capacity.
- Optional column extension for long workpieces.
- Small space.
Examples of use
- Compression/tensile tests
- 3-point bending test
- Peeling test
- Weld strength test
- Connector insertion/withdrawal test
- With standing load test of LCD
Specifications
|
MODEL-1310K |
| Max. force |
2kN（200kgf） |
| Force accuracy |
Depends on the load cell used. |
| Force measuring amplifier |
MODEL-1018 |
| Controller |
Built in |
| Test speed |
5～125mm/min |
| Speed changing |
5 steps or stepless |
| Stroke |
150mm |
| Distance between test center and column |
125mm |
| Table size |
φ200 mm, center M10 x 1.5 |
| Drive motor |
DC brushless motor |
| Detector |
Rotary encoder, resolution 0.01 mm |
| Display accuracy |
0.1mm |
| Dimensions |
W356×H900×D314mm |
| Stand mass |
Approx. 41kg |
| Amplifier mass |
Approx. 5.2kg |
| Power supply |
Single phase, 100 VAC – 240 VAC, 1A |
| Standard set |
Tester, force measuring amplifier MODEL-1018, load cell 1 piece |
| Options |
Additional load cell, jig/fixture, software, column extension |
