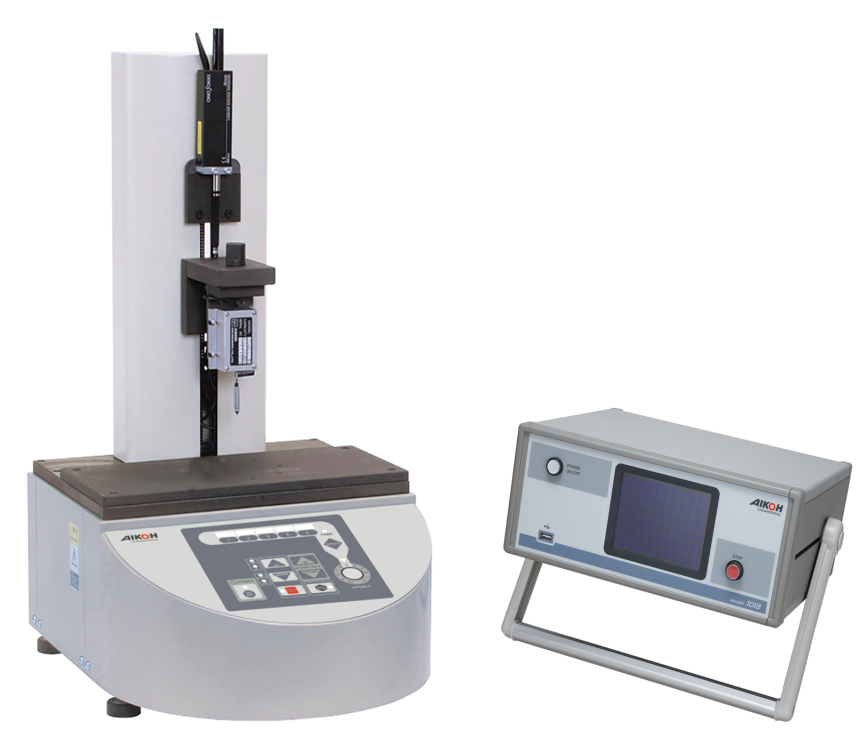

- A desktop precision force tester.
- Compression and tensile tests.
- Force minimum display 0.001 N (when 5N load cell is used).
- Displacement minimum display 0.001 mm.
- Most suitable for testing small (miniature) parts.
- Most suitable for switch feeling test.
Examples of use
- Switch feeling test
- Electronic device evaluation test
- Touch panel load measurement
- Tact switch feeling test
Specifications
| MODEL-1305K | |
| Max. force | 200N（20kgf） |
| Force accuracy | Depends on the load cell used. |
| Force measuring amplifier | MODEL-1018 |
| Controller | Built in |
| Test speed | 2～60mm/min |
| Speed changing | 5 steps or stepless |
| Test Stroke | 25mm |
| Distance between test center and column | 77mm |
| Table size | W330×D150mm |
| Drive motor | DC brushless motor |
| Detector | Linear gauge |
| Display accuracy | 0.05mm |
| Dimensions | W340×H580×D430mm |
| Stand mass | Approx. 32 kg |
| Amplifier mass | Approx. 5.2 kg |
| Power supply | Single phase, 100VAC – 240VAC 0.5A |
| Standard set | Tester force measuring amplifier MODEL-1018 load cell 1 piece linear gauge |
| Options | Additional load cell, jig/fixture, software, detector Model 0219 |
