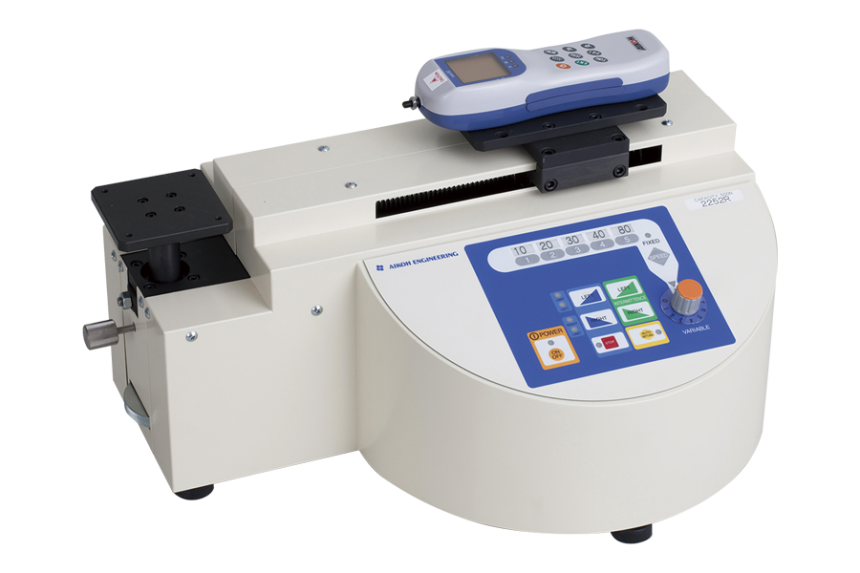

Horizontal motorized stand MODEL-2252R

  • A motorized stand for horizontal installation only.
  • Fixed speed setting and good data reproduction.

Examples of use

  • Tensile & compression tests
  • Strength test
  • Shear test of boards, etc.

Specifications

MODEL-2252R
Max. force 500N(50kgf)
Controller Built in
Test speed 10~80mm/min
Speed changing 5 steps or stepless
Stroke 150mm
Distance between test center and column 39~79mm
Table size W90×D90mm
Drive motor DC brushless motor
Dimensions W518×H228×D345mm
Stand mass Approx. 23 kg
Power supply Single phase, 100 – 240 VAC, 0.5 A
Options Force gage
jig/fixture
