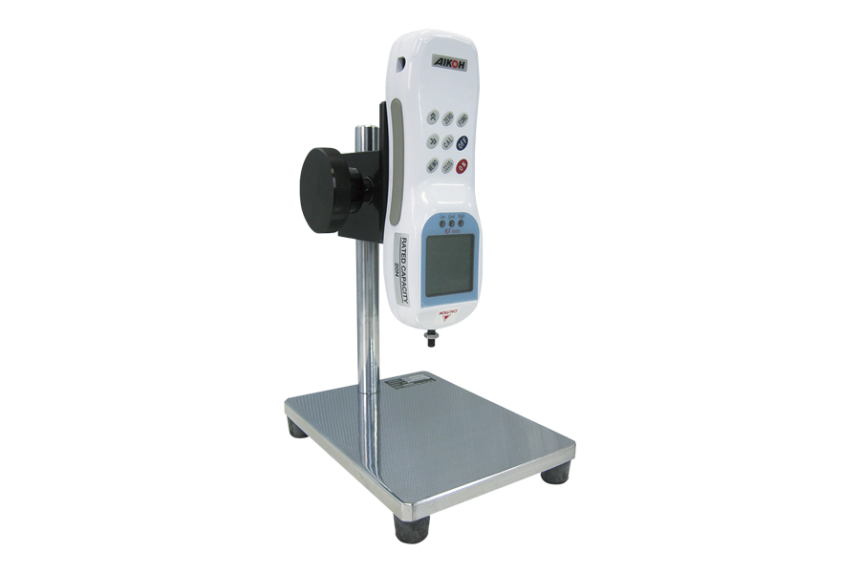

Manual stand MODEL-1338

  • A light-weight manual stand for compression test.
  • Turning the knob on the side face moves the force gage up and down.
  • Light-weight and easy to move.
  • Suitable for switches of small movement amount and miniature workpieces.

Examples of use

  • Switch feeling test
  • Miniature workpiece shear test
  • Spring pressure test

Specifications

MODEL-1338
Max. force 50N(5kgf)
Test speed Manual
Stroke 20mm
Table size W150×D200mm
Dimensions W150×H260×D200mm
Stand mass Approx. 5 kg
Options Force gage
jig/fixture
cable
