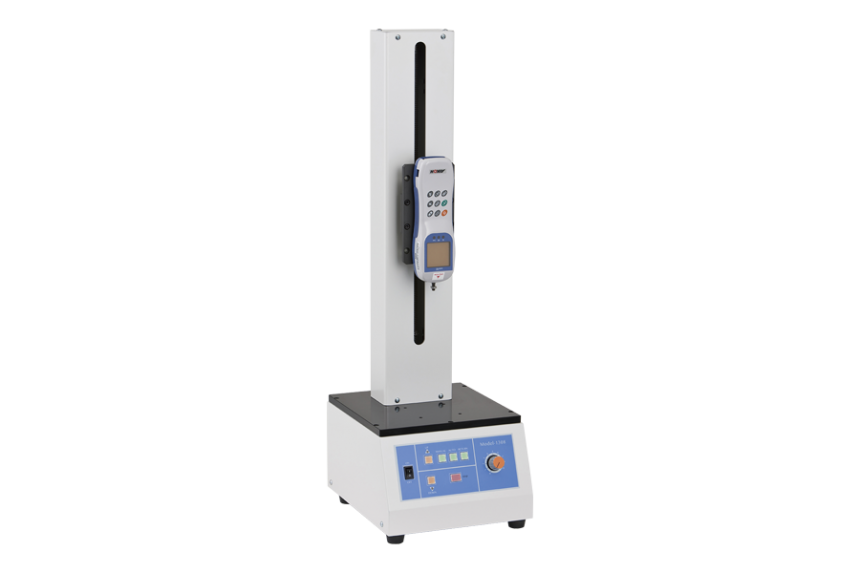

Motorized stand MODEL-1308UH

  • A high speed type of Model 1308U.
  • Compliant with the JIS peeling test.

Examples of use

  • Peeling test
  • Tesin/rubber strength test
  • Tape weld T-type peeling test

Specifications

MODEL-1308UH
Max. force 200N(20kgf)
Controller Built in
Test speed 10~300mm/min
Speed changing Speed changing
Stroke 400mm
Distance between test center and column 60mm
Table size W150×D140mm
Drive motor DC speed control motor
Dimensions W255×H810×D300mm
Stand mass Approx. 28 kg
Power supply Single phase 100 – 240 VAC, 0.5 A
Options Force gage
jig/fixture
cable
jig mounting plate OJ-P-90 (for tensile test)
