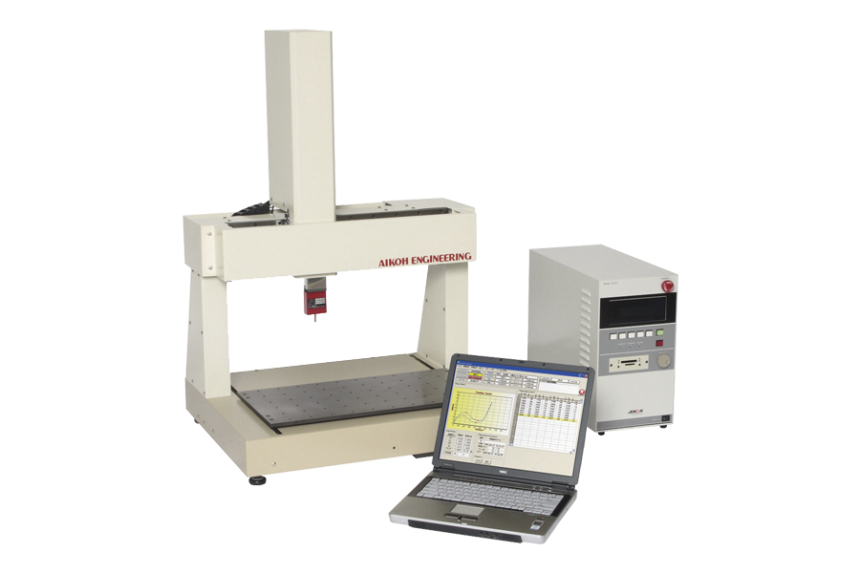

- A tester dedicated to force-displacement feeling test of such devices as various types of switches, keyboards, dome switches and rubber switches.
- XYZ 3-axis automatic control.
- Capable of testing up to 16 ON/OFF contacts.
- Real-time display of waveforms on the amplifier and PC screen.
Example of use
- Tact switch feeling test
- Keyboard switch feeling test
- Metal dome switch feeling test
Specifications
| GT-FL500 | |
| Z axis (test) specifications | |
| Max. force | 50N（5kgf） |
| Drive method | AC servo motor |
| Control motion | Up/down |
| Drive range | 0～200mm |
| Force measuring range | 0～50N（0～5kgf） |
| Force resolution | 0.001N（1mN） |
| Force accuracy | Depends on the load cell used. |
| Detector | Rotary encoder |
| Displacement measuring range | 0～200mm |
| Displacement resolution | 0.001mm |
| Display accuracy | ±0.05mm |
| Test speed range | 0.1～50mm/min |
| Moving speed range | 1～15mm/sec. |
| Analog output | ±10 V (force, displacement) |
| Dimensions | W750 x D560 x H900 mm |
| Mass | Approx. 50kg |
| Power supply | AC100V/AC200～230V |
| X-Y axes (move) specifications | |
| Drive method | Stepping motor |
| Control motion | X: Right/left, Y: Front/back |
| Drive range | X : 0～450mm Y : 0～200mm |
| Detector | Rotary encoder |
| Displacement resolution | 0.01mm |
| Display accuracy | ±0.1mm |
| Moving speed range | 1～30mm/sec. |
| Sample table size | W480 × D280 mm |
| Sample carrying mass | Approx. 20kg |
| Standard set | Tester, Model 1013Ⅱ, load cell 1 piece, dedicated software |
| Options | Personal computer(English or Japanese), additional load cell, jig/fixture |
