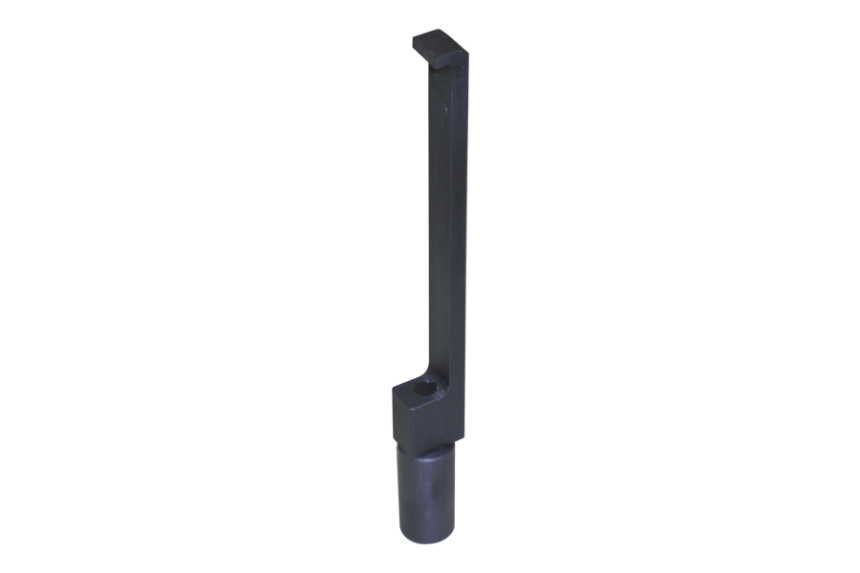

Shear jig HS Series

  • Used for lead-free solder strength test and device strength test.
  • The width of the faces where parts contact can be selected from four types; 2, 4, 6 and 8 mm according to sizes of parts.

Example of use

  • Parts on board shear test
  • Lead-free solder strength test

Specifications

HS-2 HS-4 HS-6 HS-8
Capacity 30N 50N
Jaw size (W x D mm) W2 W4 W6 W8
Mounting part M6 x P1 female screw
Mass (g) 44 46 48 49
Option Conversion screw
