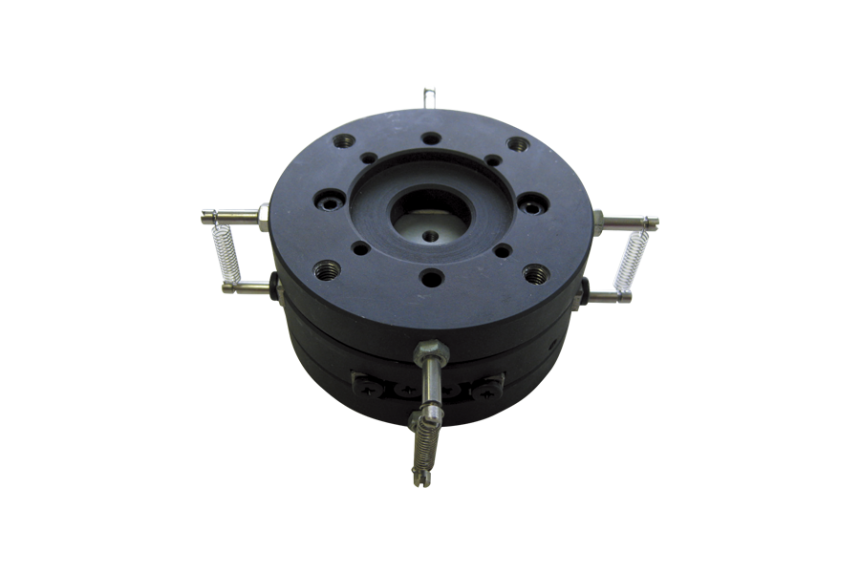

Auto alignment table MODEL-340 Series

  • When this table is installed on the workpiece side or the load cell side, the workpiece or the load cell is automatically aligned during rotation test.
  • A tension & compression type (Model 340-L-5) is also available.

Example of use

  • Automatically moving the workpiece or load cell to the center.


MODEL-340-05 MODEL-340-5 MODEL-340-L-5
Capacity 0.5N・m 20N・m 500N
Size (Table diameter x H mm) φ60×H33 φ80×H41 φ80×H49
Mass (g) 315 1280 1440

Document download and related products

External View MODEL-340-05(PDF)

External View MODEL-340-5(PDF)

External View MODEL-340-L-5(PDF)
