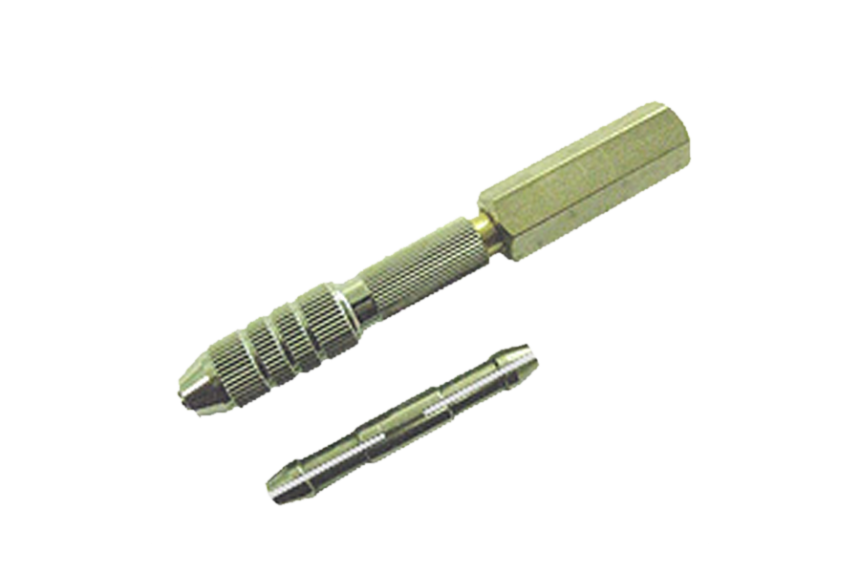

Pin vise MODEL-224-P-4/5

  • A jig of pin vise shape.
  • Usable for both tension and compression and suitable for measurement of micro load.

Example of use

  • Measurement of micro load
  • Holding of compression test pin
  • Holding of small wire


Capacity 10N
Jaw size (W x D mm)
Jaw max. opening width (mm) 0~φ3.2
Type For round bar / Collet change type
Mounting part M6 x P1 male screw
Mass (g) 12
Option Conversion screw
