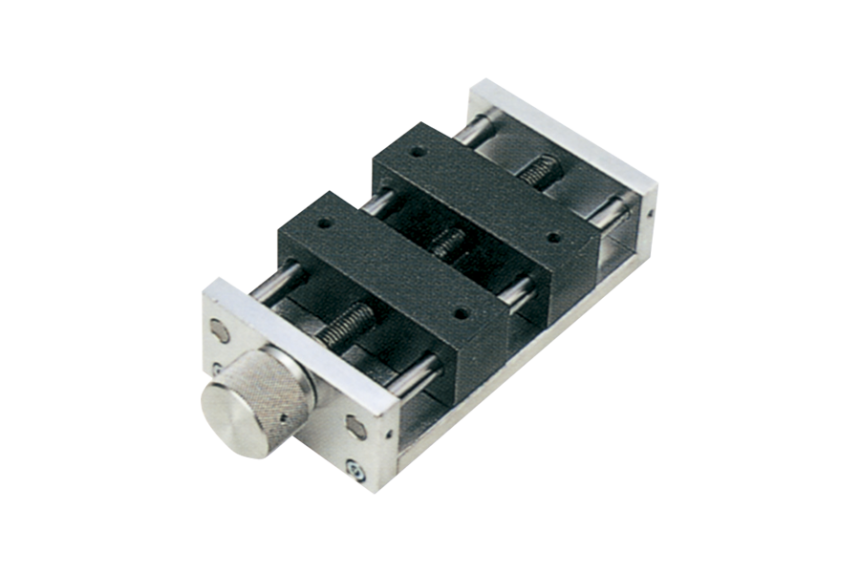

Double side opening vise MODEL-220

  • A stationary type double side opening vise.
  • A large opening to grip a wide range of workpieces.
  • Clamp faces exchangeable to allow the use of special clamp faces made of resin.

Example of use

  • Tensile test
  • Compression test
  • Cellular phone test
  • Connector insertion/withdrawal test


Capacity 1kN
Jaw size (W x D mm) 90×30
Jaw max. opening width (mm) 0~80
Type Right-hand/left-hand thread
Mounting part Secured in M4 counterbore hole
Mass (g) 2800
Option Mounting plate
