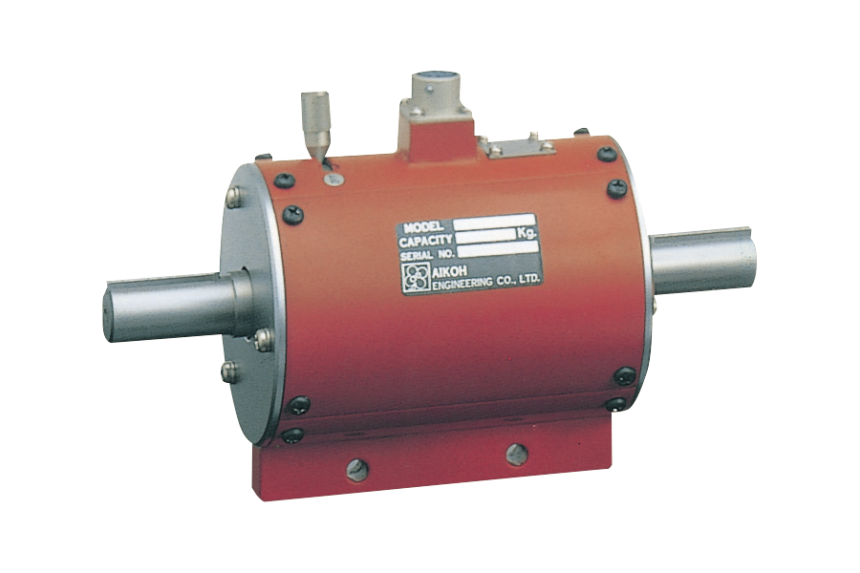

Rotary type torque meter QR Series

  • A torque meter to measure torsion torque while rotating continuously.
  • Placed between samples to measure to be used as a device like a coupling system.
  • Signals are taken from the slip ring.


QR Series
Rated capacity 10N・m~2kN・m
Rated output 1.5mV/V±1%(10~50N・m : 1mV/V)
Nonlinearity 0.3%R.O.
Hysteresis 0.2%R.O.
Repeatability 0.1%R.O.
Recommended applied voltage 10V
Allowable applied voltage 15V
Input/output resistance 350Ω±2%
Insulation resistance 1000 MΩ or over
Temperature compensation range -10~+70℃
Allowable temperature range -20~+80℃
Zero point influence by temperature ±0.01%R.O./℃
Output influence by temperature ±0.01%R.O./℃
Allowable overload 150%R.C.
Cable length 2m (optional)
Tip shape Y terminal
