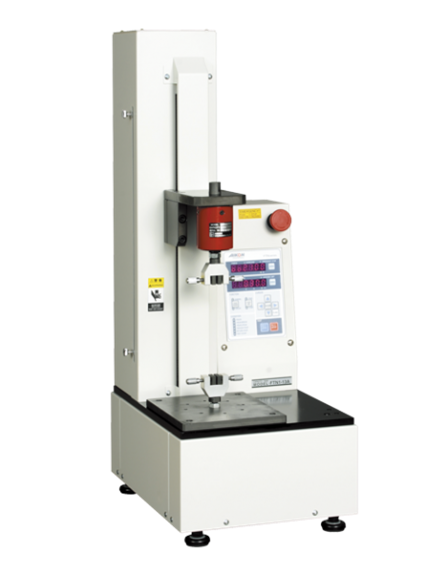

- A desktop force tester.
- Most suitable for strength evaluation test.
- Displacement resolution 0.01 mm.
- Most suitable for testing small parts.
- Dedicated PC software included (control & data acquisition).
- Up to three load cells can be used.
Examples of use
- Strength test
- Electronic device properties evaluation
Specifications
|
FTN1-13A |
| Max. force |
500N（50kgf） |
2KN（200kgf） |
| Force accuracy |
Depends on the load cell used. |
| Force measuring amplifier |
Built in |
| Controller |
Built in |
| Test speed |
5～300mm/min |
5～125mm/min |
| Speed changing |
Numeric input (Settable on the PC) |
| Stroke |
390mm |
| Distance between test center and column |
100mm |
| Table size |
W174×D200mm |
| Drive motor |
Stepping motor |
| Detector |
Rotary encoder |
| Display accuracy |
±0.2mm |
| Dimensions |
W300×D400×H823mm |
| Stand mass |
Approx. 40 kg |
| Power supply |
Single phase, 100VAC – 240VAC 3A |
| Standard set |
Tester, load cell(3000 Series or UP Series) 1 piece, software FTN-3001 |
| Options |
Additional load cell, jig/fixture |
