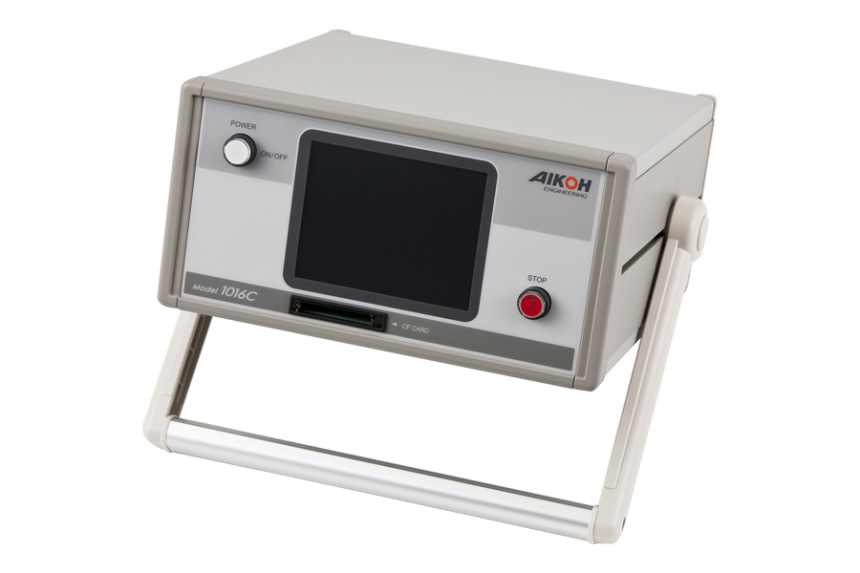

Force measuring amplifier MODEL-1016C

  • Force – displacement and torque – angle measurement.
  • Switch feeling test.
  • Creep test.
  • Save the data to the CF card.

Examples of use

  • LCD touch panel.
  • Four-quadrant operation necessary for reciprocal measurement realized.
  • Communication rate as high as 230.4 kbps.
  • Capable of calibrating loads of ten load cells maximum.
  • Capable of reading force and displacement at points selected with the cursor.

Specifications

MODEL-1016C
Major application Amplifier and stand control for force/torque tester sensors
Max. force Depends on the load cell used.
Accuracy Depends on the load cell used.
Controller Stand control output
STOP/UP/DOWN/QUICK
Test speed Depends on the stand used.
Speed setting method Main unit only.
Displacement detection method A/B phase up/down counter x 2 channels, resolution 24 bits
Dimensions H132.5×W260×D280mm
Mass Approx. 5.2kg
Power supply AC100V±10% 0.3A
