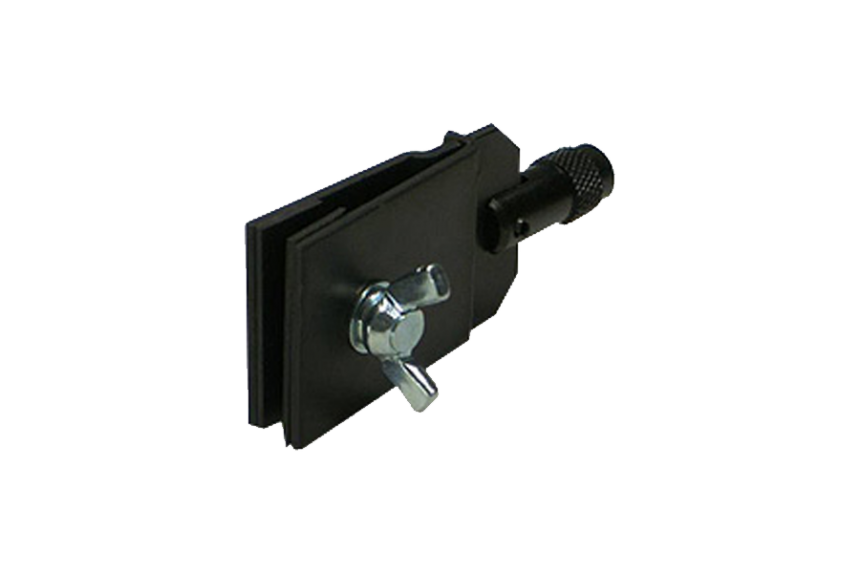

Film chuck, sand paper MODEL-228H Series

  • File-shaped anti-slip sheets attached to workpiece chucking faces to chuck film.
  • Suitable for tensile test of such materials as film the surface of which is not flat.

Example of use

  • Tensile test
  • Peeling test

Specifications

MODEL-228H-10 MODEL-228H-20 MODEL-228H-30 MODEL-228H-40
Capacity 20N
Jaw size (W x D mm) W10 W20 W30 W40
Jaw max. opening width (mm) 1
Type Screwing
Mounting part M6 x P1 female screw
Mass (g) 38 49 67 77
Option Conversion screw

Document download and related products

External View MODEL-228H-10(PDF)

External View MODEL-228H-20(PDF)

External View MODEL-228H-30(PDF)

External View MODEL-228H-40(PDF)
