Software for force testers FS-700

  • Software dedicated to the force measuring amplifier MODEL-1016 Series Basic.

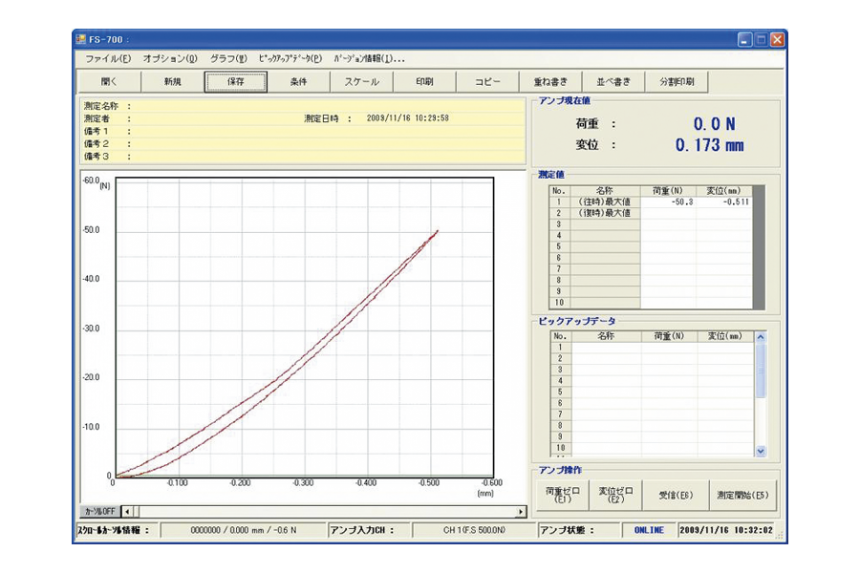

  • Acquisition of force-displacement data and drawing of graphs. (Batch loading after completion of measurement.)
  • Amplifier measurement condition setting (comparator, etc.).
  • Acquisition of all graph data by automatic continuous tests. (Semi-manual test possible also.)
  • Overlapped/shifted display and split printing possible.
  • English OS supported.

Examples of use

  • Connector insertion/withdrawal test
  • Unpacking force test


Major application Software for Model-1016 Series Basic
Computer standard DOS/V compliant IBM/PC compatible
Operating system(OS) Microsoft Windows 7, 8,10 : Japanese or English
CPU Intel Core i3 Processor 2.0GHz min.
Main memory 2048 MB min. (4096 MB min. recommended)
Hard disk drive 20 to 300 MB according to operating environments
Optical drive CD-ROM drive x 1
When this software is installed.
Display High color (16 bits) min. (32 bits. min. recommended)
Desktop area 1024 x 768 min.
Communication port  USB port x 1    or   RS-232C port  x 1
