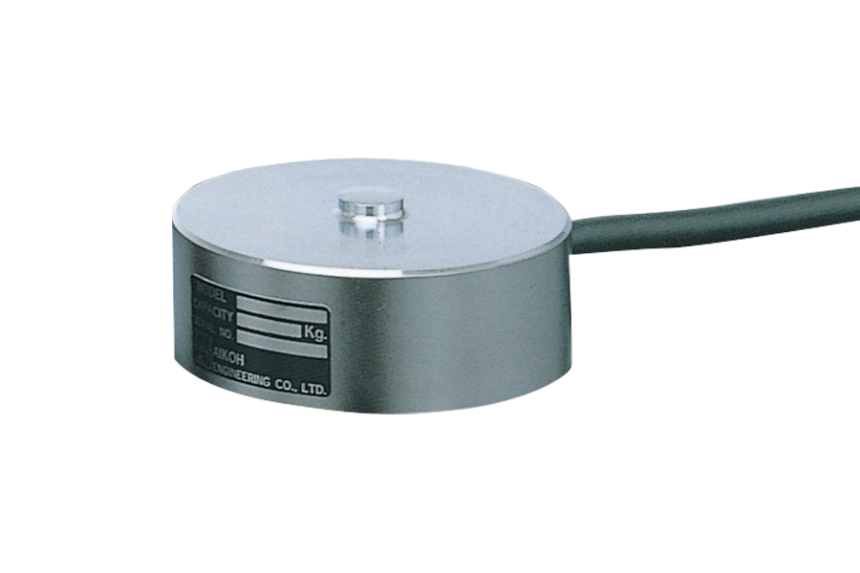

High performance load cell for compression test VCV Series

  • Made of stainless steel for load up to 20 kN to ensure high corrosion resistance.
  • Can easily be installed in a limited space.

Specifications

VCV Series
Rated capacity 500N~100kN
Rated output 2mV/V±0.25%(50 & 100kN : 2mV/V±0.5%)
Nonlinearity 0.15%R.O.(50 & 100kN : 0.1%R.O.)
Hysteresis 0.1%R.O.
Repeatability 0.05%R.O.
Recommended applied voltage 8V
Allowable applied voltage 12V
Input/output resistance 350Ω±2%
Insulation resistance 1000MΩ以上
Temperature compensation range -10~+70℃
Allowable temperature range -15~+80℃(50 & 100kN : -15~+75℃)
Zero point influence by temperature ±0.05%R.O./℃
Output influence by temperature ±0.1%R.O./℃
Allowable overload 150%R.C.
Cable length 3m
Tip shape Plug
